Padel

The Padel DPApp provides padel court booking services, allowing users to browse venues, book courts, and manage reservations — all within your host app.

User flow

The Padel booking journey is shown from left to right.

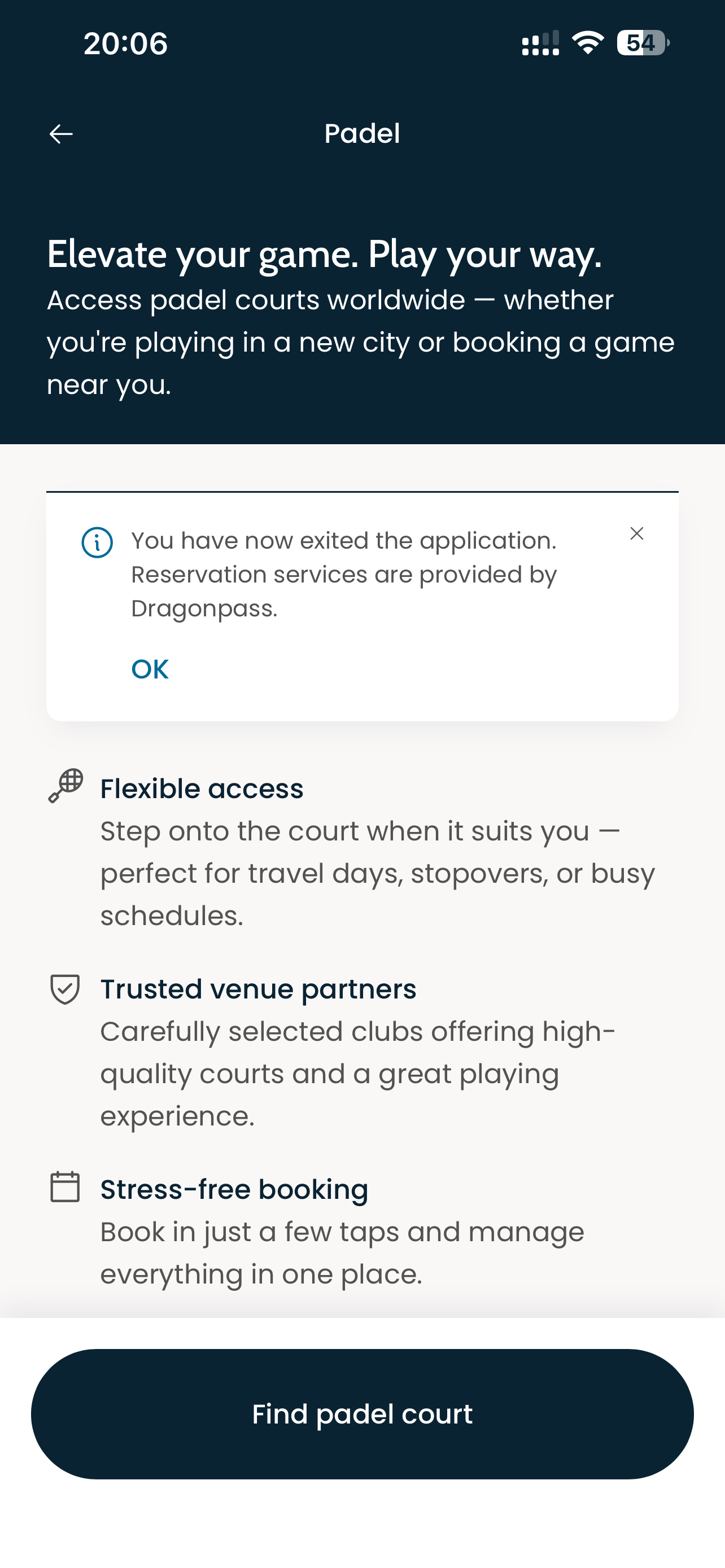

Landing

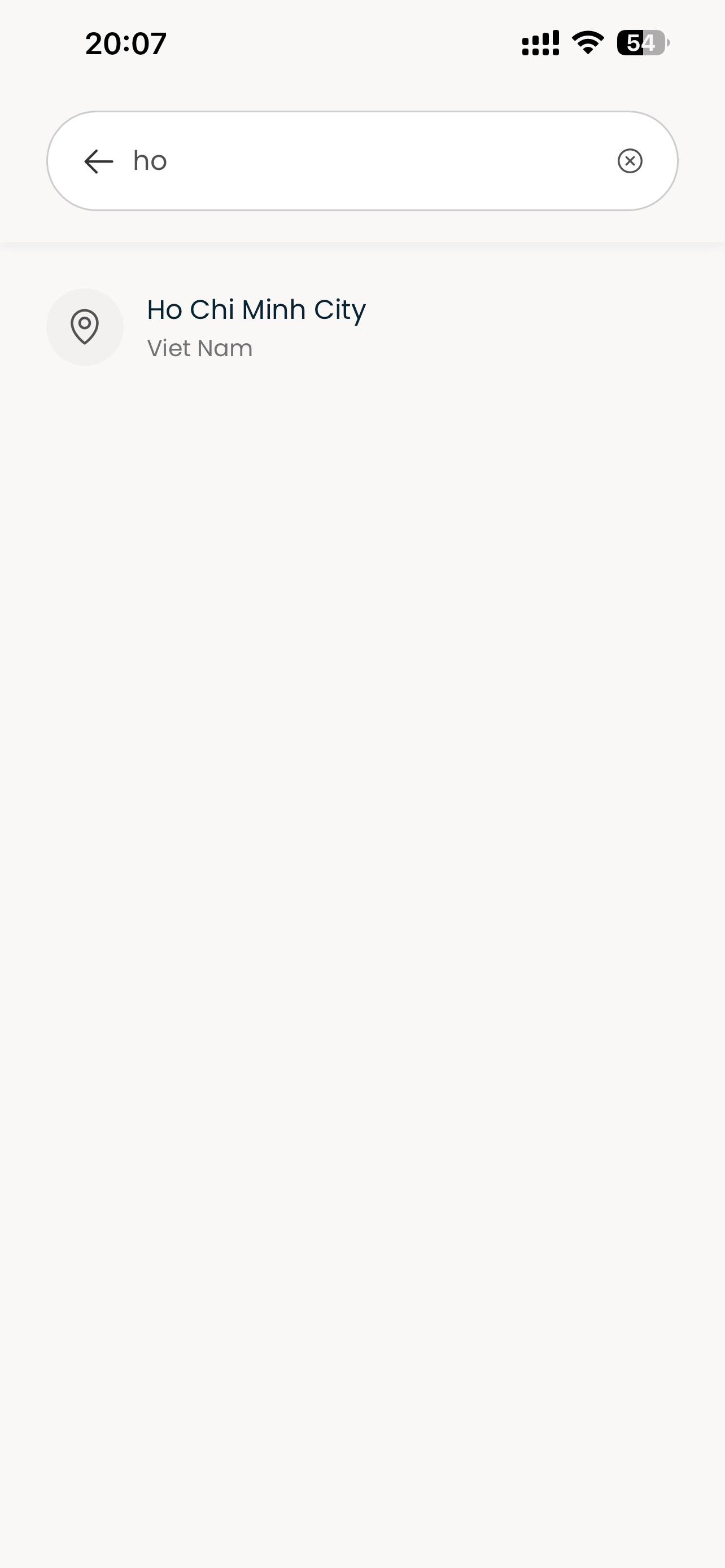

Location search

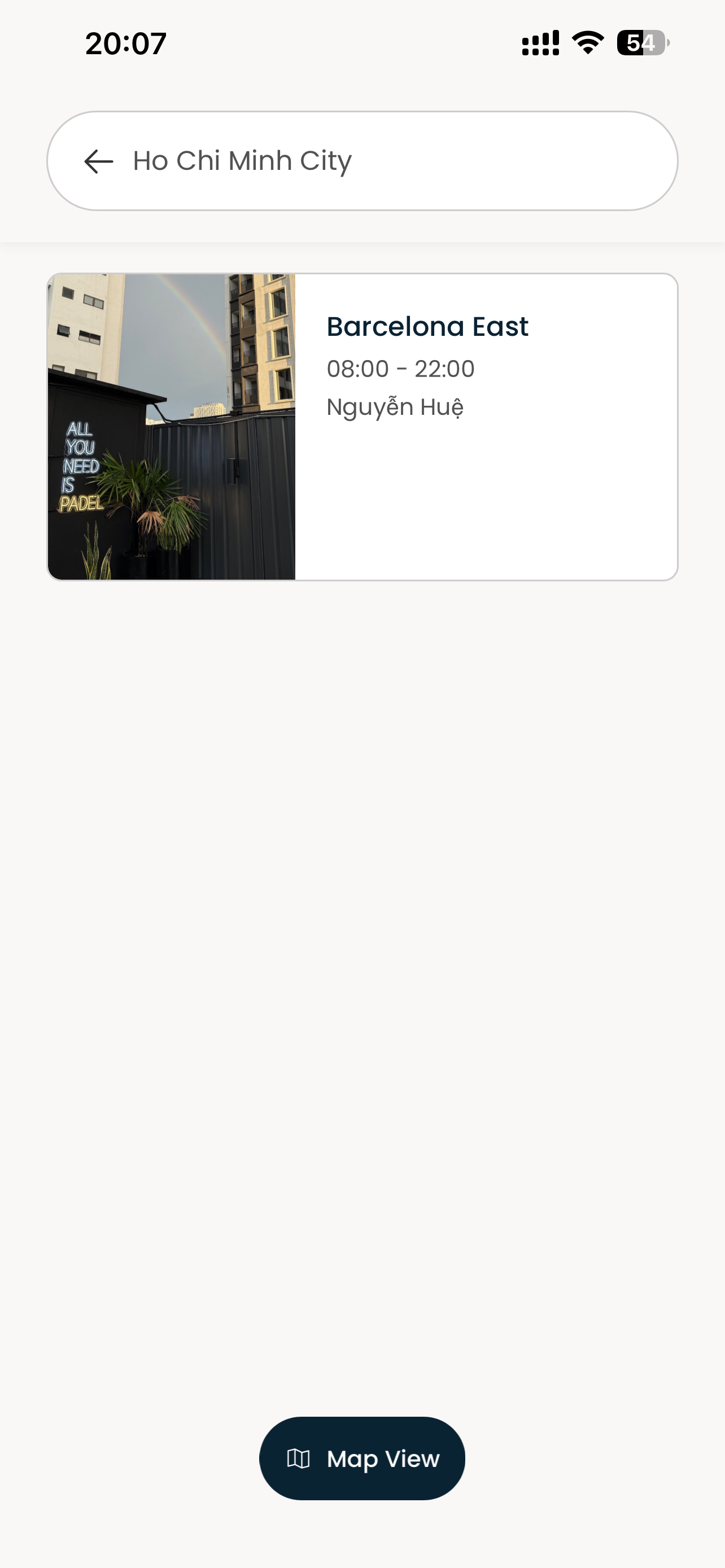

Resource list

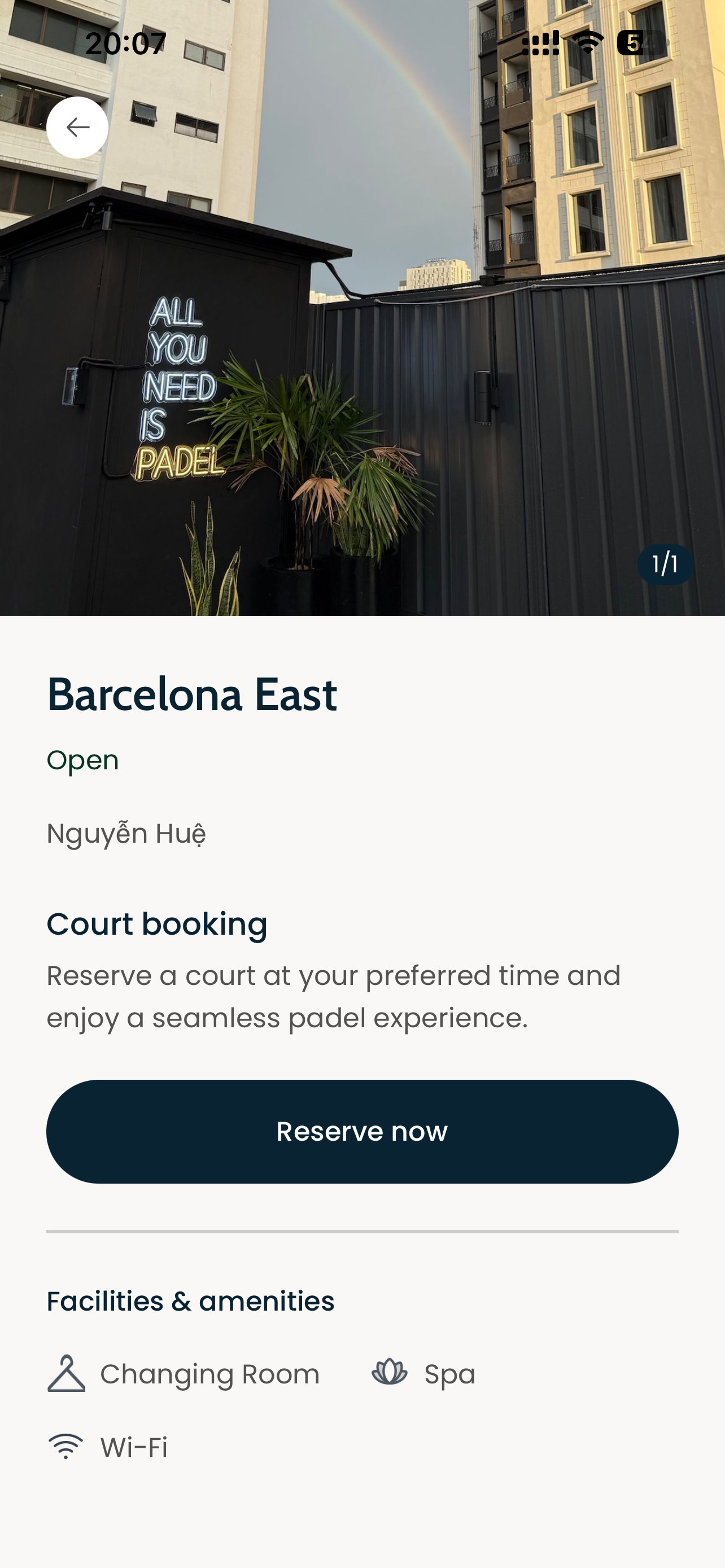

Resource detail

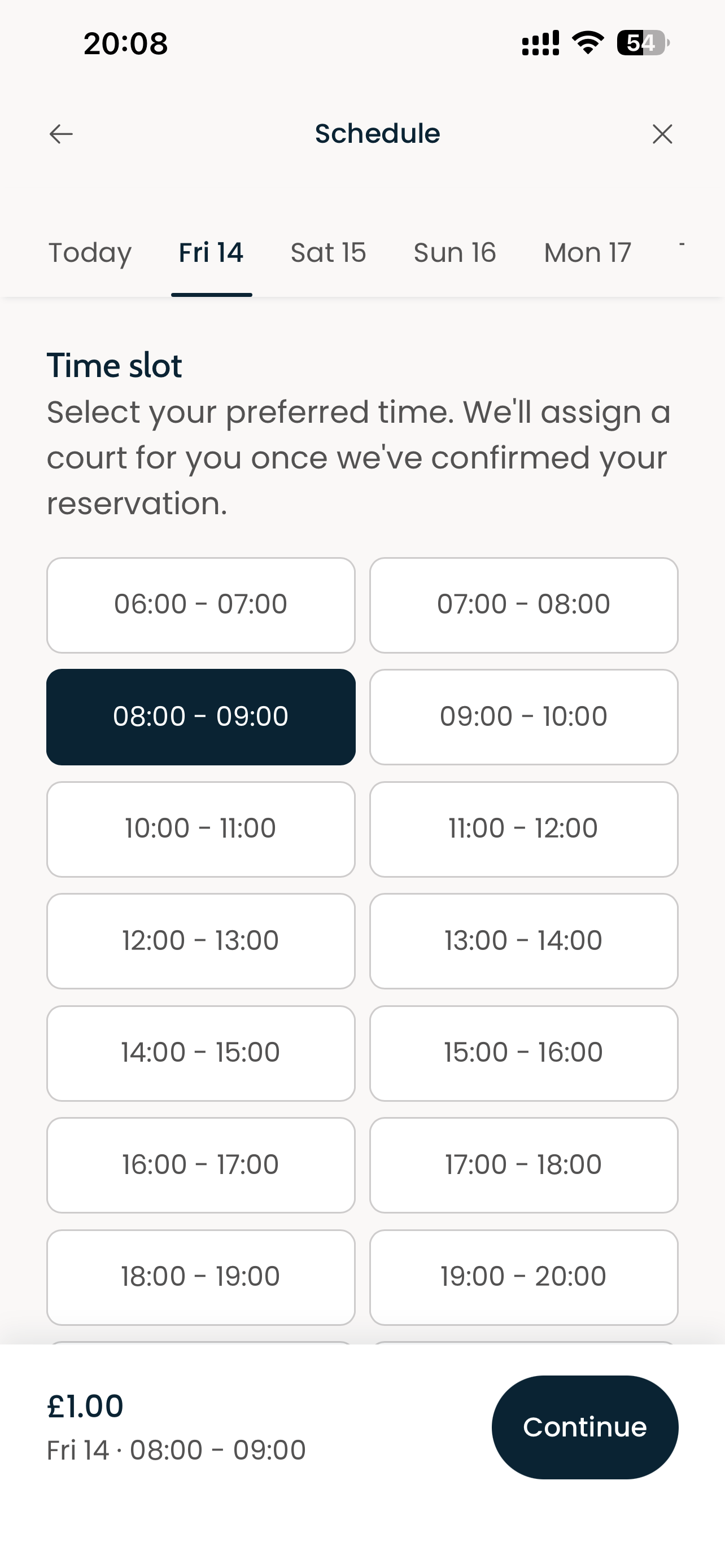

Schedule

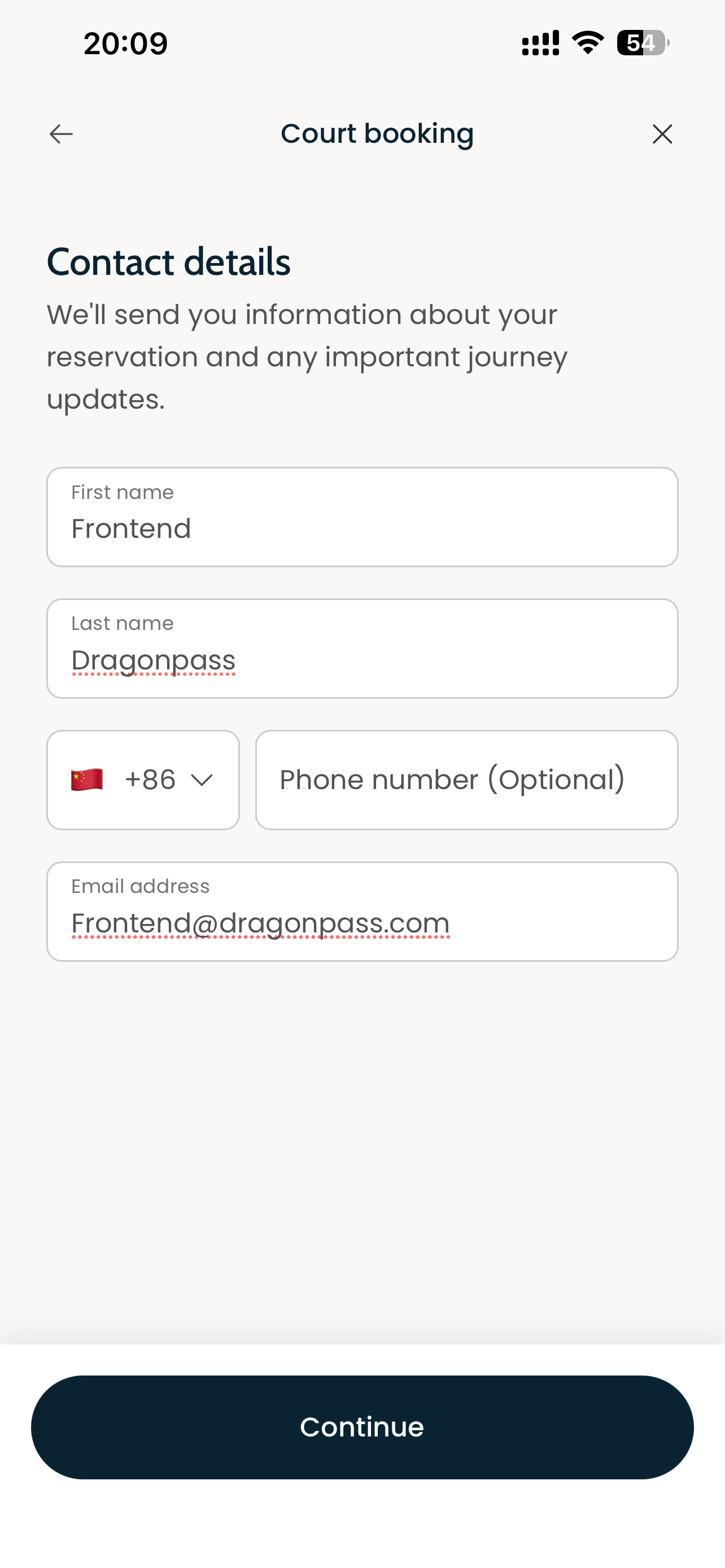

Contact detail

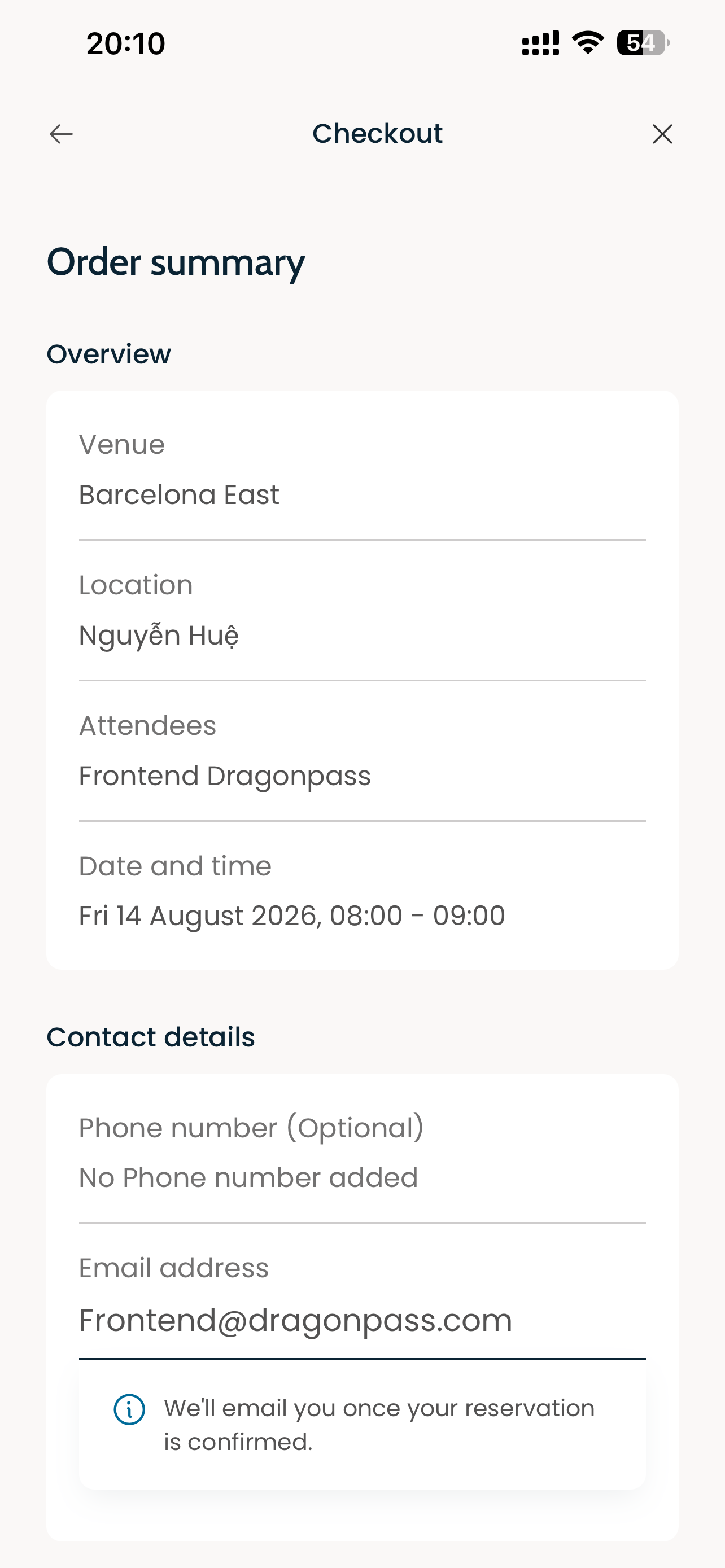

Checkout

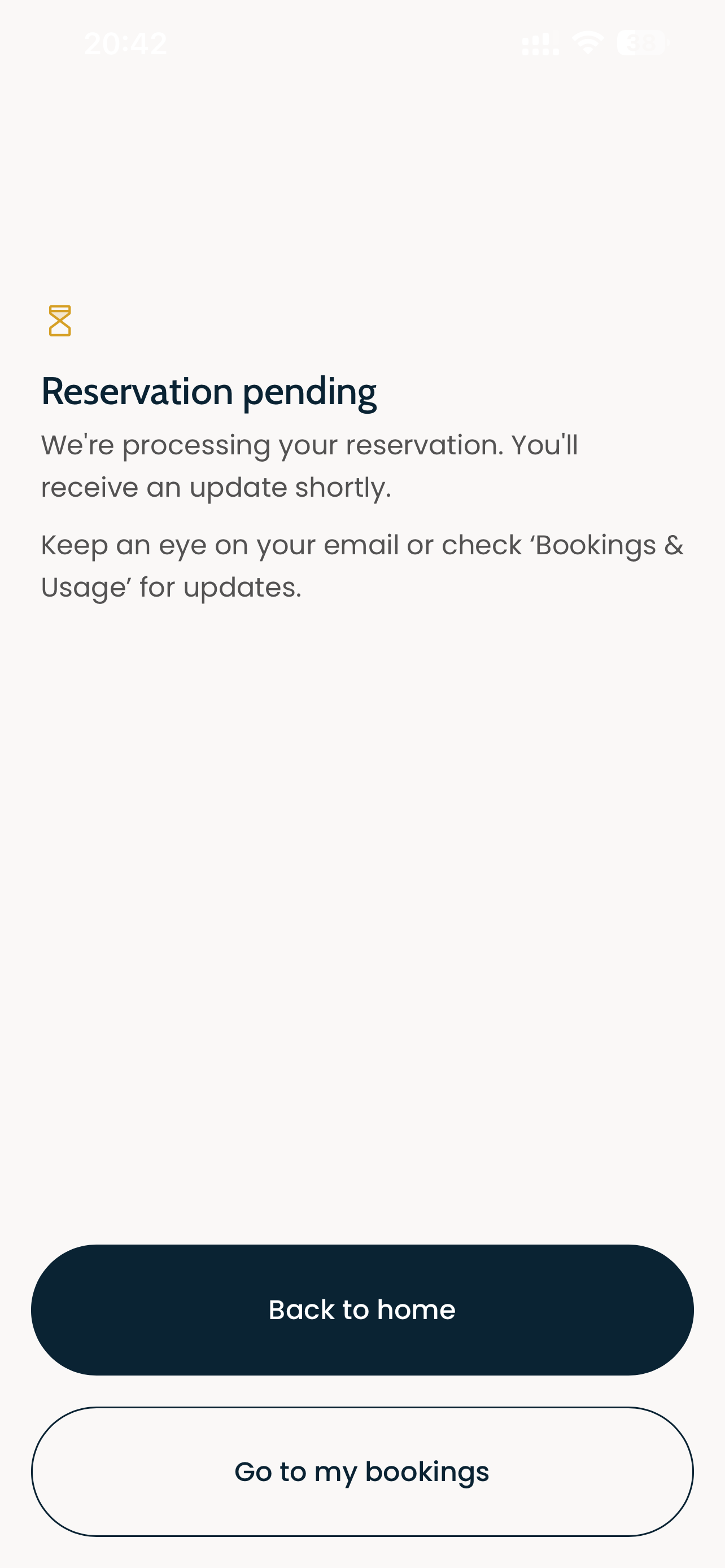

Order result

Routes & Parameters

Pages are opened by the host app via DPSDK.open(appId: "padel", ...) (iOS) or DPSDK.getDPApp("padel").open(...) (Android), or navigated internally. Only the pages below can be opened via the SDK — other pages (e.g. Resource list, Schedule, Contact detail) are internal flow pages reached from within the app.

PAGE NAME	PATH	Query parameters	Description
Landing	padel/landing	—	Home page with feature intro and "Find padel court" entry
Location search	padel/location-search	—	City / nearby location picker
Order detail	padel/order-detail	order_no	Order details & management

Parameters

System parameters

These parameters are required and must always be included when opening the Padel DPApp.

Parameter	Type	Required	Description	Example
language	string	true	UI language of the app; supported values: zh-CN (Chinese, China), en-US (English, United States), zh-TW (Chinese, Taiwan), zh-HK (Chinese, Hong Kong), vi-VN (Vietnamese, Vietnam), id-ID (Indonesian, Indonesia), ja-JP (Japanese, Japan), ko-KR (Korean, South Korea), th-TH (Thai, Thailand) (default: en-US)	en-US
tenant_code	string	true	Tenant code used for tenant isolation and validating the tenant configuration on the DP Platform	0494
action_type	string	true	Access mode of the session; supported value: operate	operate
channel	string	false	Distribution channel identifier of the host app, used for channel-level configuration and analytics, e.g. standard, eBridge (default: standard)	standard
pro_code	string	true	Product code that determines which product the checkout flow lands on (IGC product)	IGC0494000001
module	string	true	Business module identifier used for module-level routing and configuration (11 for Padel)	11

ℹ️ Parameter naming varies by category: this app uses pro_code for the product code. See System parameters for the full list.

Page parameters

These parameters are only needed when the corresponding page is opened directly.

Order detail (padel/order-detail)

Parameter	Type	Required	Description	Example
order_no	string	true	Booking order number of the reservation, required to load the order details when the page is opened directly	IGC20260813BN1SGXU

Prerequisites

• A registered clientId from the DP Platform — contact us to get one
• The padel appId configured under your client
• DP Hybrid SDK integrated into your host app

iOS

Open the Padel DPApp from any UIViewController:

Swift

// From any UIViewController
DPSDK.open(appId: "padel", from: self)

To open a specific page directly (e.g. landing or order detail), pass the page path and its query parameters in the params dictionary:

Swift

// Open the landing page (default)
DPSDK.open(appId: "padel", from: self)

// Open the landing page directly
DPSDK.open(
  appId: "padel",
  params: [
    "path": "padel/landing",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "11",
    "language": "en-US",
    "pro_code": "IGC0494000001",
  ],
  from: self
)

// Open the order detail page directly
DPSDK.open(
  appId: "padel",
  params: [
    "path": "padel/order-detail",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "11",
    "language": "en-US",
    "pro_code": "IGC0494000001",
    "order_no": "IGC20260813BN1SGXU",
  ],
  from: self
)

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, code, resource_id) are appended only for the pages that need them (see Page parameters).

Android

Open the Padel DPApp from any Activity or Fragment:

Kotlin

// From any Activity or Fragment
DPSDK.getDPApp("padel").open(this)

To open a specific page directly (e.g. landing or order detail), pass the page path to open() and set the query parameters via setExtraUrlParams:

Kotlin

// Open the landing page (default)
DPSDK.getDPApp("padel").open(this)

// Open the landing page directly
val dpApp = DPSDK.getDPApp("padel")
dpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "11",
        "language" to "en-US",
        "pro_code" to "IGC0494000001",
      )
    )
    .build()
).open(this, "padel/landing")

// Open the order detail page directly
val orderDpApp = DPSDK.getDPApp("padel")
orderDpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "11",
        "language" to "en-US",
        "pro_code" to "IGC0494000001",
        "order_no" to "IGC20260813BN1SGXU",
      )
    )
    .build()
).open(this, "padel/order-detail")

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, code, resource_id) are appended only for the pages that need them (see Page parameters).

Handling order results

When a booking is placed or an order detail is opened, the host app can listen for URL changes to react to the result (e.g. refresh its own order list after a successful booking). See DPApp URL Listener for the full API.

Swift

// iOS
DPApp.delegate = self

extension ViewController: DPAppCustomDelegate {
  func didDPAppChangeUrlEvent(DPApp: DPApp, url: URL) {
    // url.path contains the DPApp page path, e.g. "padel/order-detail"
  }
}

Kotlin

// Android
val dpApp = DPSDK.getDPApp("padel")
dpApp.setUrlChangeListener { activity, url ->
  // url?.path contains the DPApp page path, e.g. "padel/order-detail"
}.open(this)
