Lounge

The Lounge DPApp provides airport lounge access functionality, allowing users to search, browse, and access airport lounges worldwide directly within your host app.

User flow

The Lounge journey is shown from left to right.

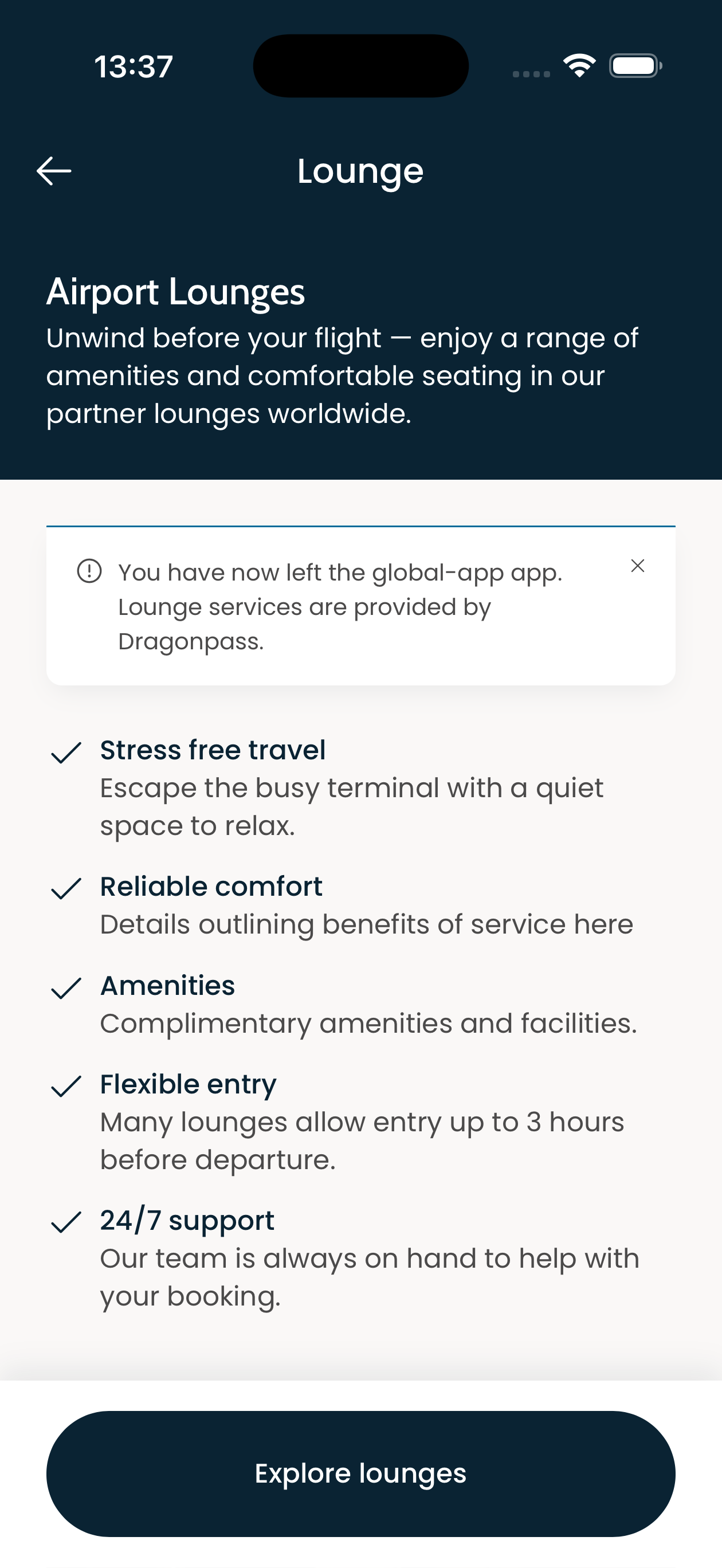

Landing

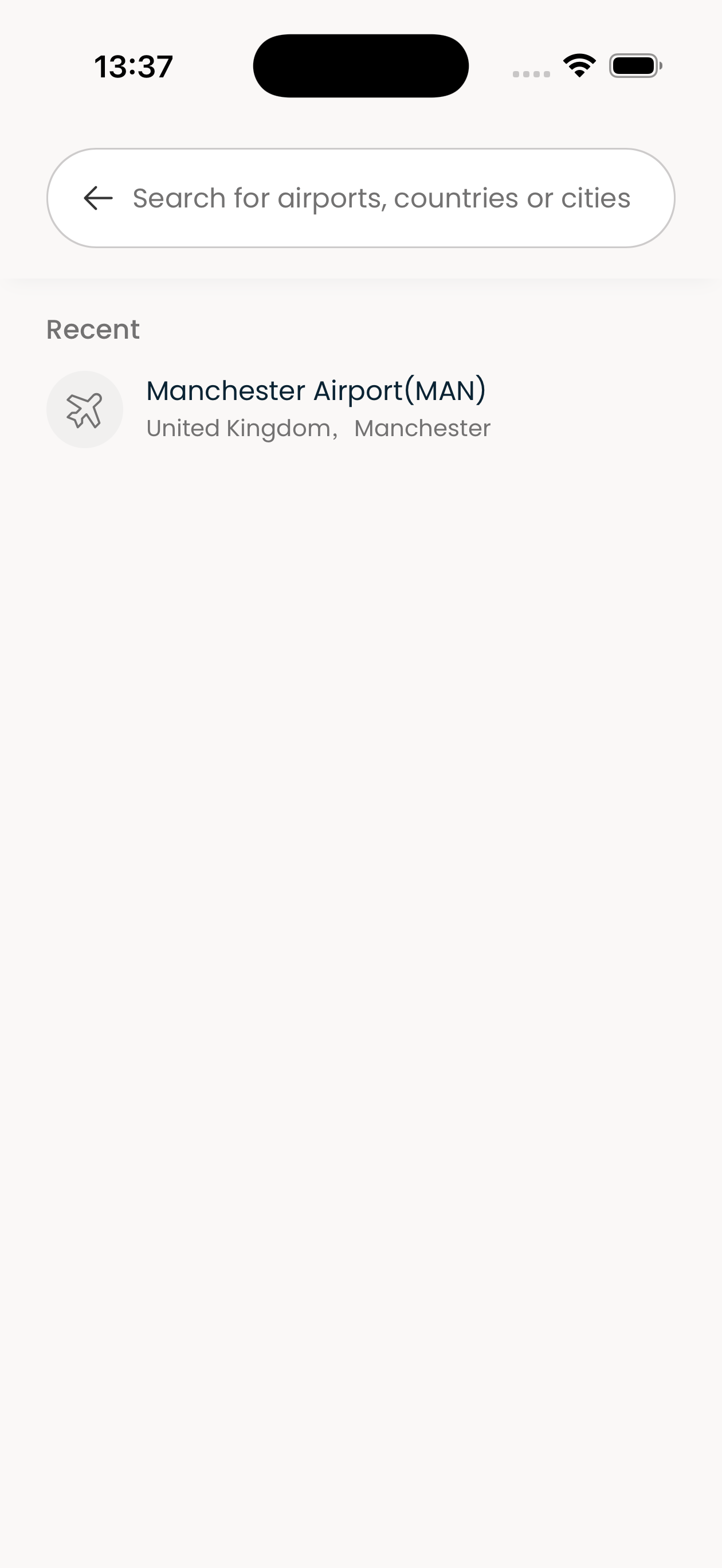

Location search

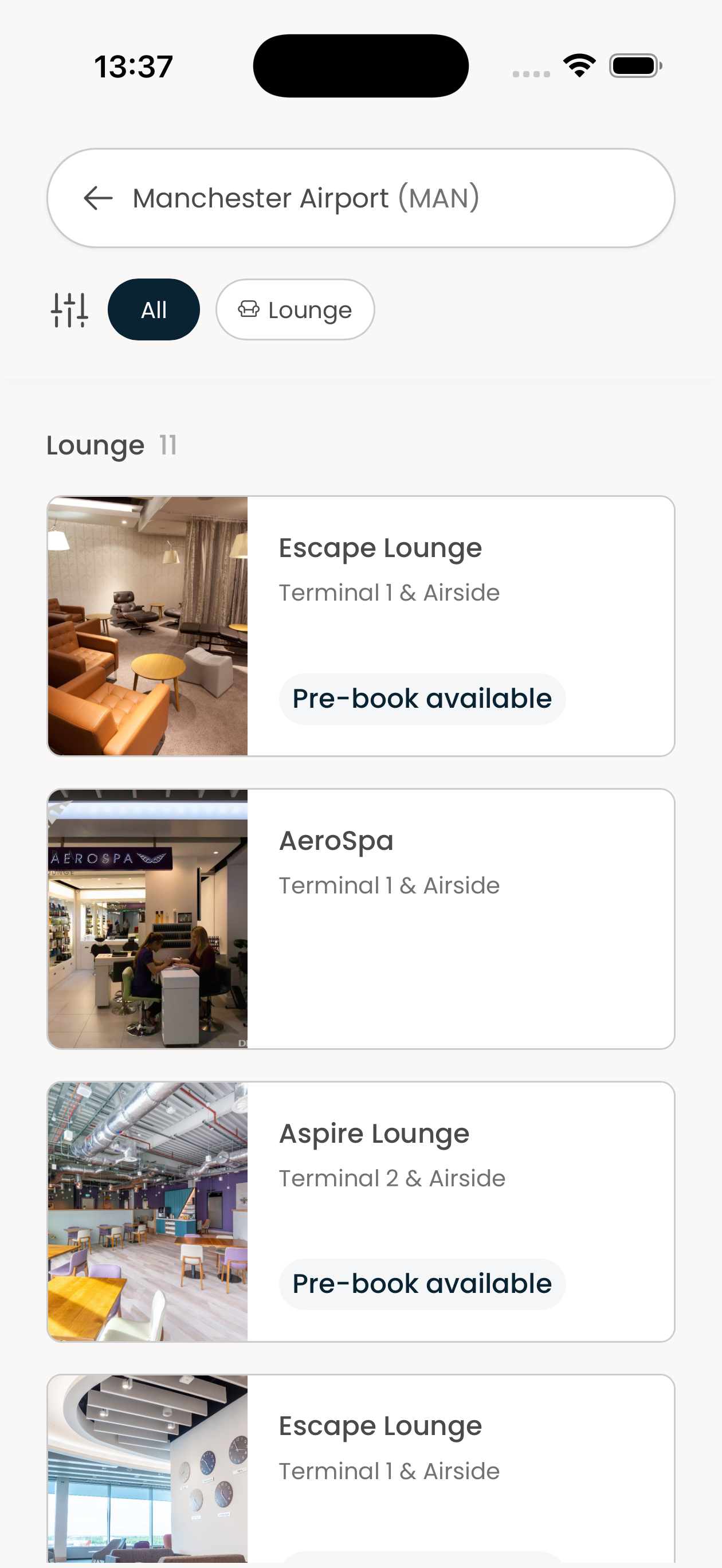

Resource list

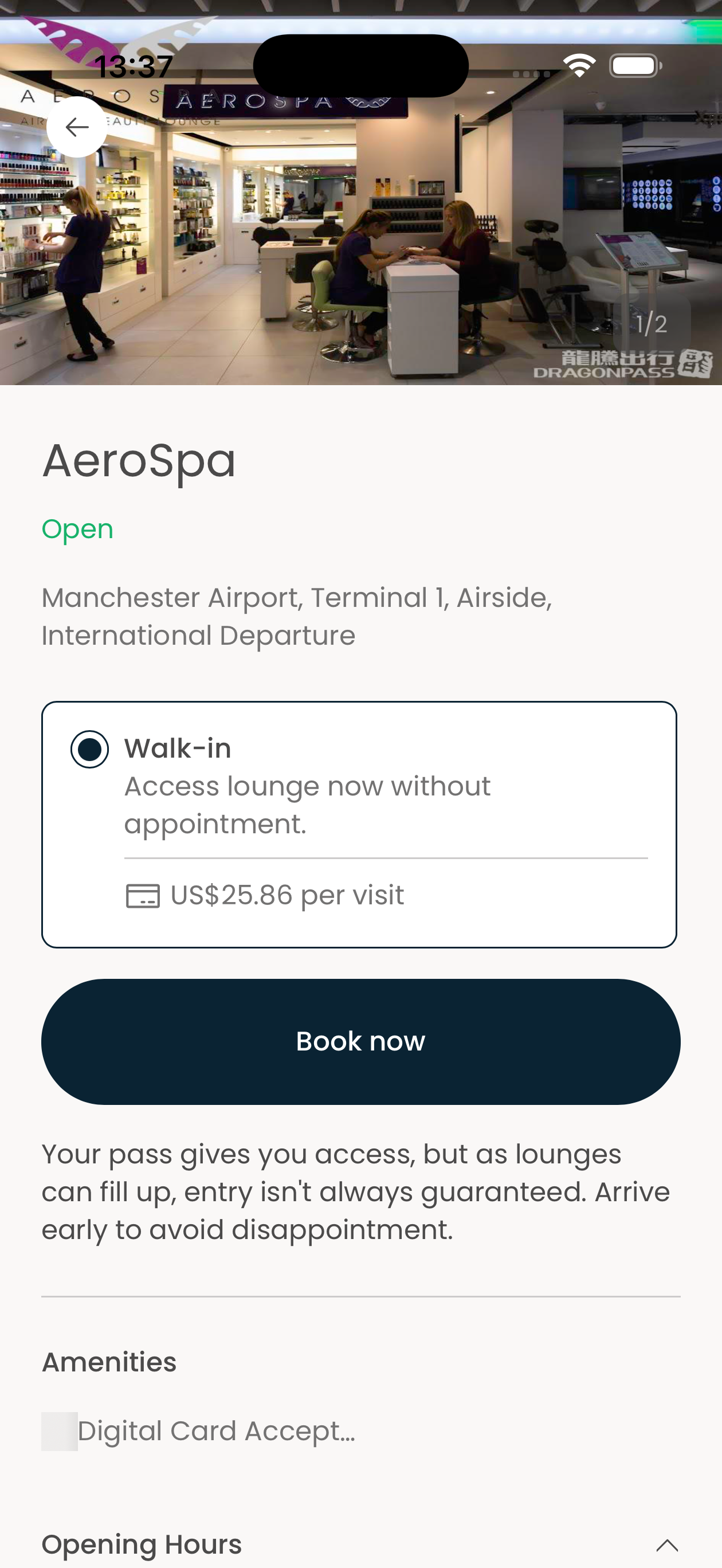

Resource detail

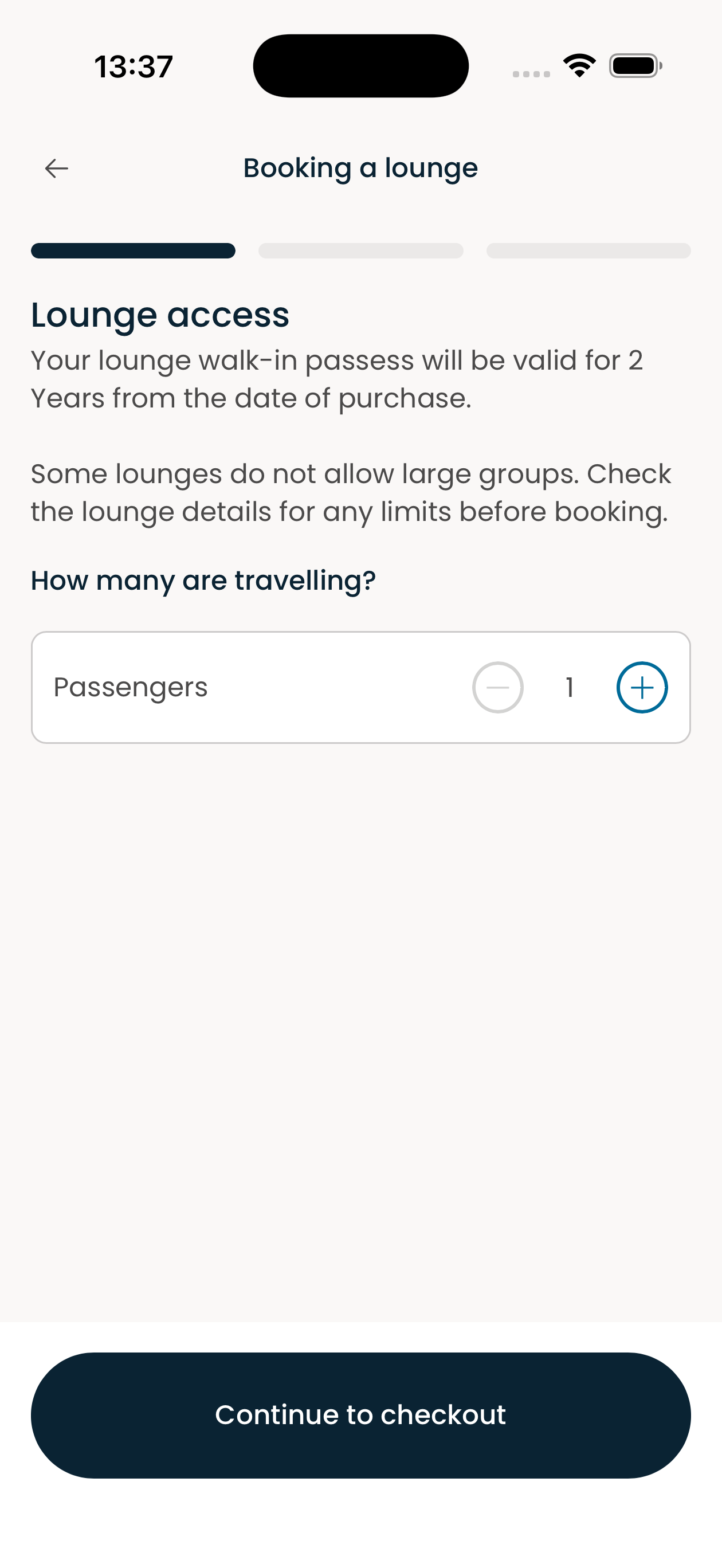

Booking

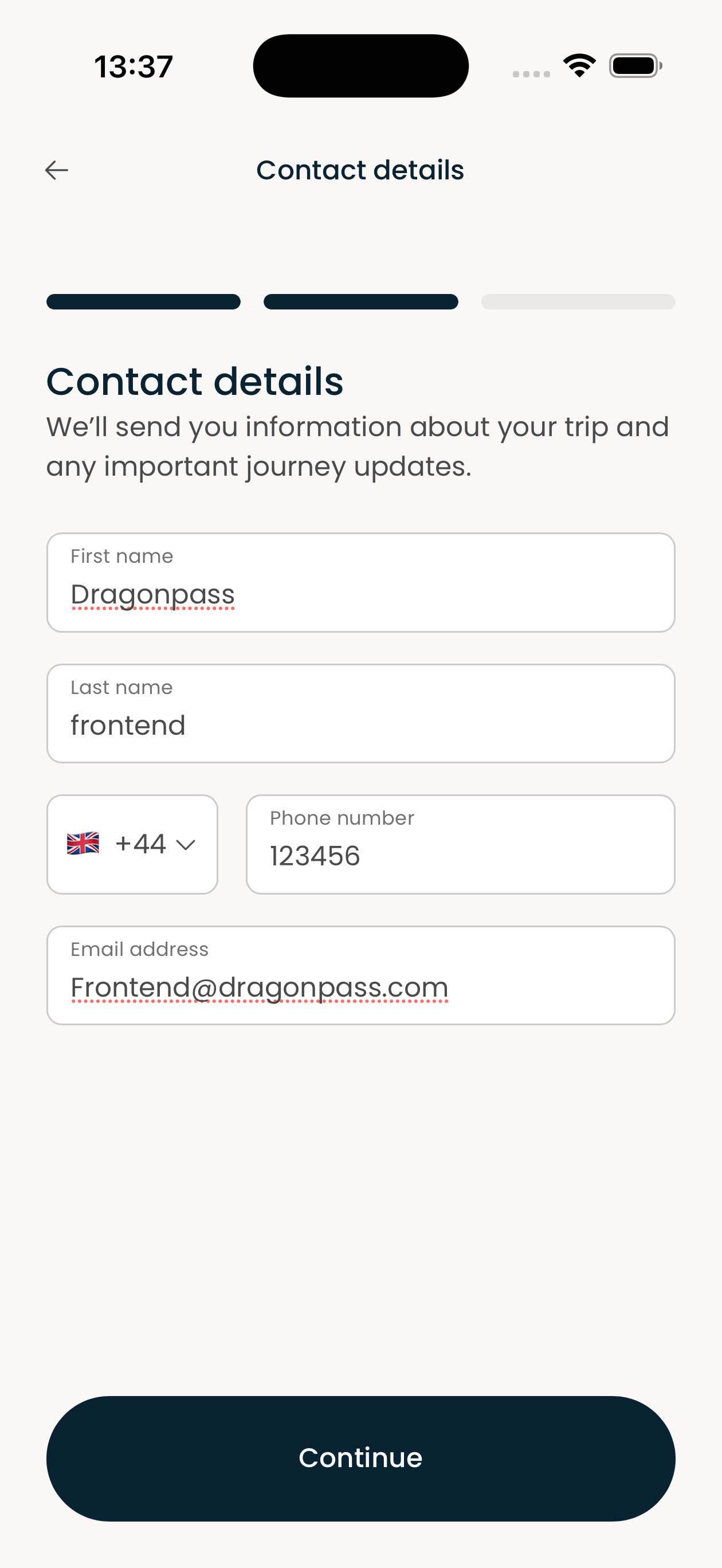

Contact details

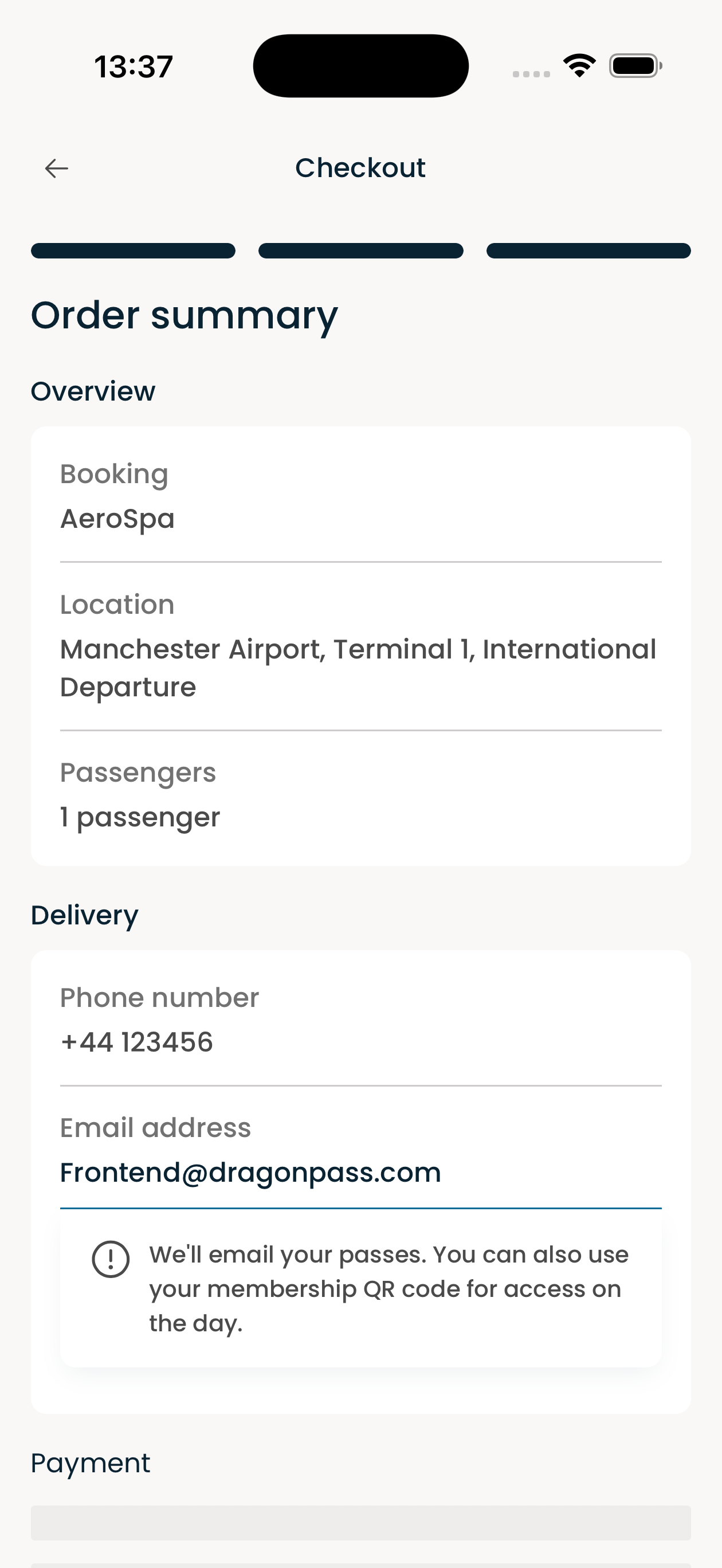

Checkout

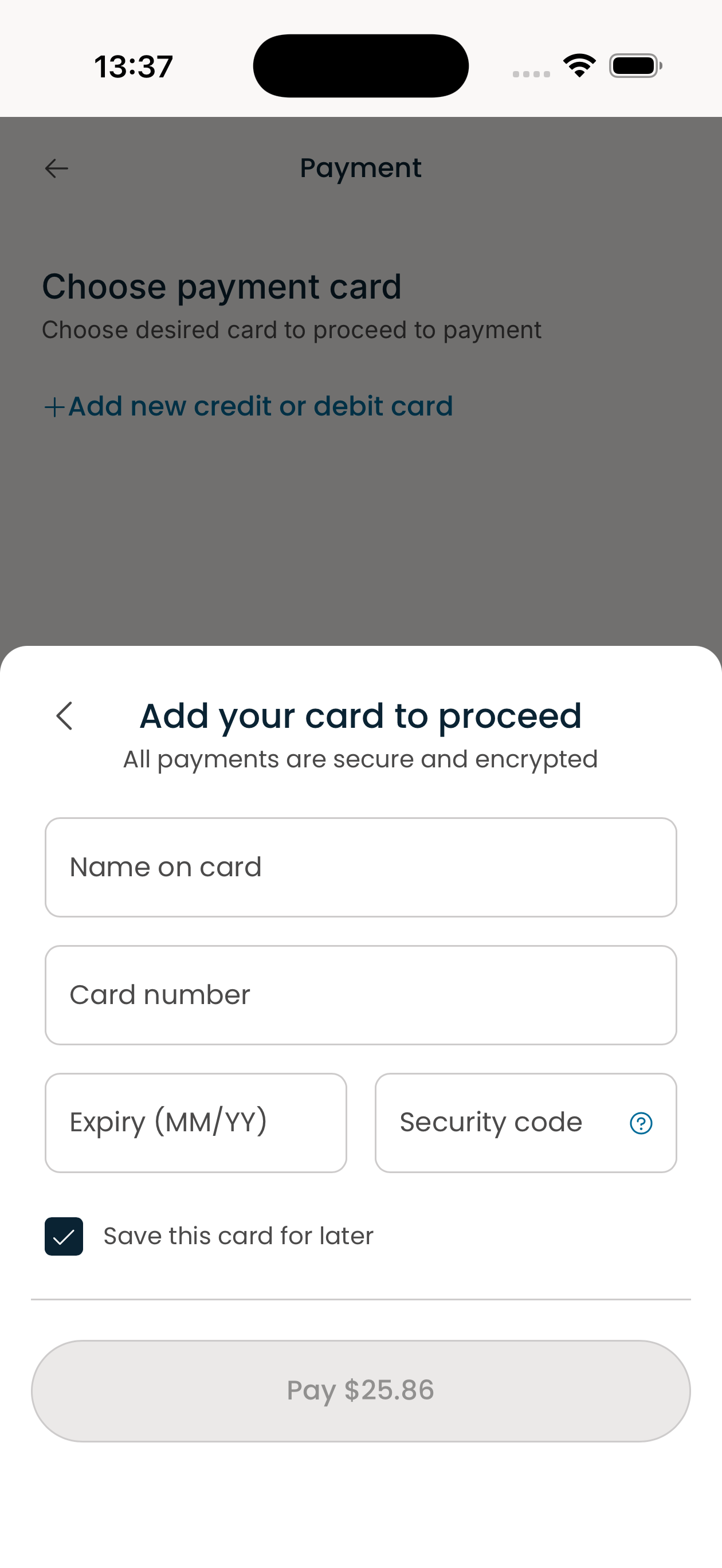

Payment

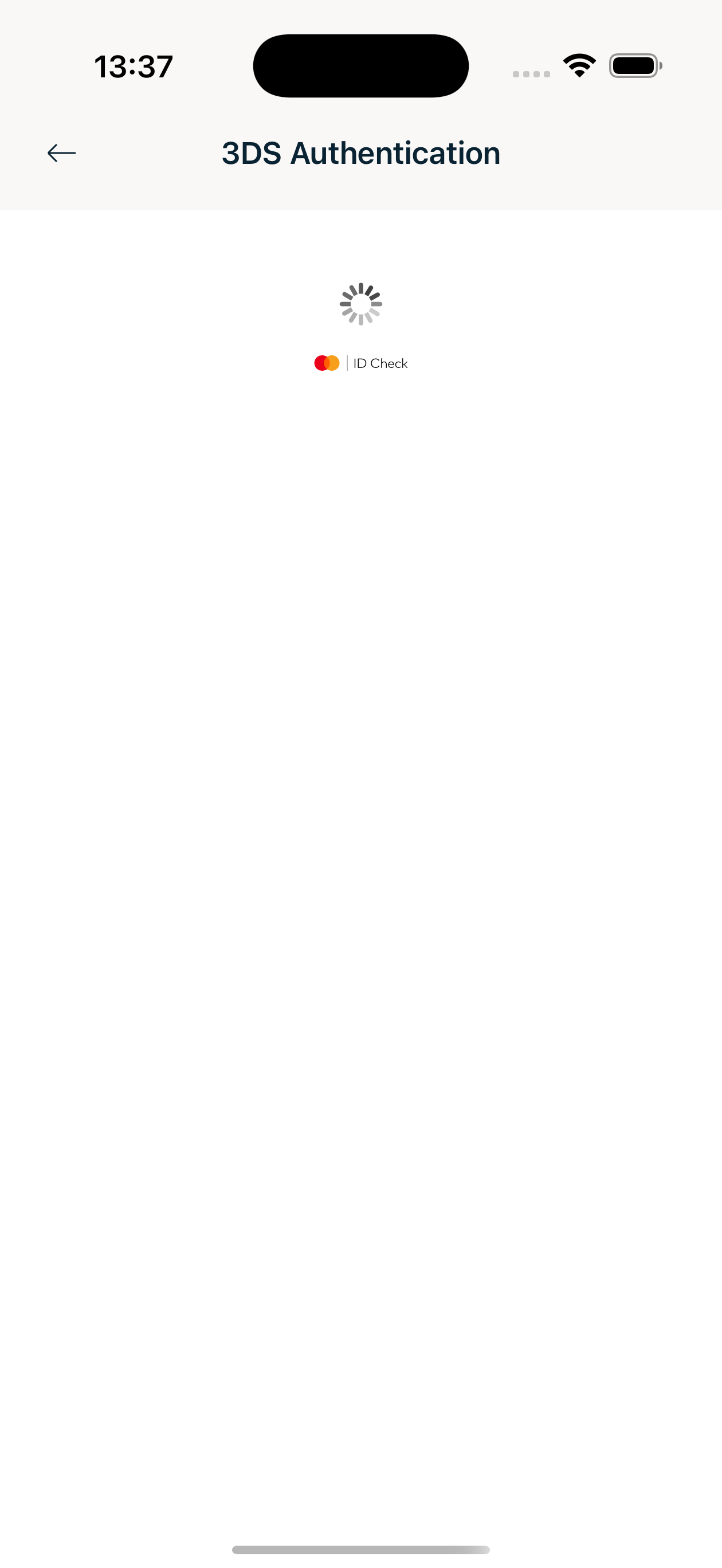

3DS authentication

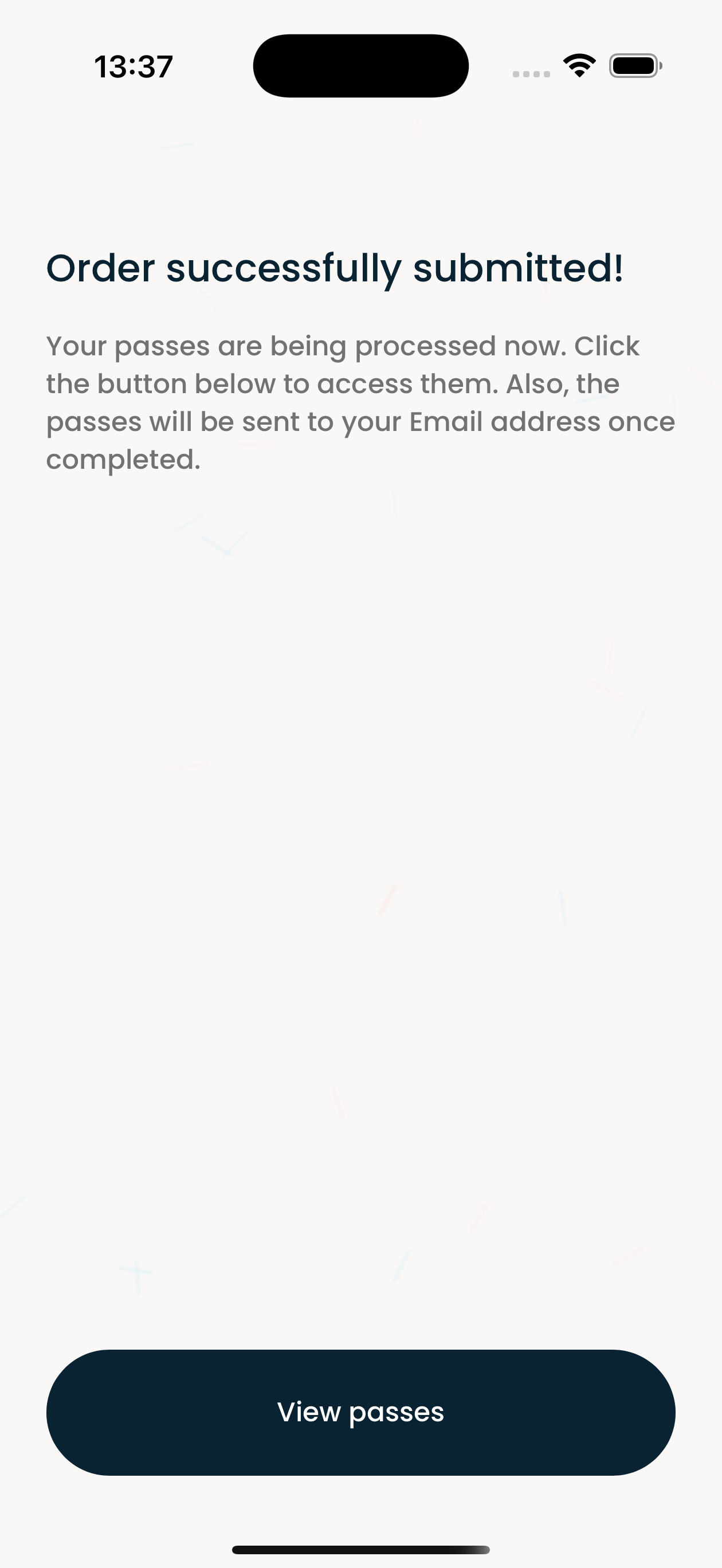

Order result

Routes & Parameters

Pages are opened by the host app via DPSDK.open(appId: "lounge", ...) (iOS) or DPSDK.getDPApp("lounge").open(...) (Android), or navigated internally. Only the pages below can be opened via the SDK — other pages (e.g. Time slot, Order summary) are internal flow pages reached from within the app.

PAGE NAME	PATH	Query parameters	Description
Landing	`lounge/landing`	`resource_id`, `transport_hub_id`, `transport_hub_name`, `iata_code`, `city_id`, `city_name`, `country_or_region`, `station_name`	Home page for discovering airport lounges worldwide
Location search	`common/search`	`keyword`, `iata_code`, `city_id`, `city_name`, `country_or_region`, `station_name`	Search page to find lounges by city or airport — type a keyword or pick a nearby location; deeplink parameters (`iata_code`, `city_id`, `city_name`, `country_or_region`, `station_name`) pre-fill the search. Selecting a station opens the Resource list page
Resource list	`common/search-result`	`transport_hub_id`, `transport_hub_name`, `iata_code`	Search result page listing lounges at the selected airport — filter the list by area, route type, terminal or category. `transport_hub_id` / `transport_hub_name` jump straight to a specific transport hub's results; `iata_code` pre-filters by airport. Tapping a result opens the Resource detail page
Resource detail	`lounge/detail`	`resource_id`	Lounge details — amenities, opening hours, directions
Order detail	`lounge/order-detail`	`order_no`	Order details & management
Lounge verify	`lounge/verify`	—	QR code verification page for lounge access — shows the member's QR code, entitlements and order list (no page parameter needed)

Parameters

System parameters

These parameters are required and must always be included when opening the Lounge DPApp.

Parameter	Type	Required	Description	Example
`language`	string	true	UI language of the app; supported values: `ar-SA` (Arabic, Saudi Arabia), `en-US` (English, United States), `zh-CN` (Chinese, China), `fr-CA` (French, Canada), `zh-HK` (Chinese, Hong Kong), `th-TH` (Thai, Thailand), `vi-VN` (Vietnamese, Vietnam), `es-AR` (Spanish, Argentina), `tr-TR` (Turkish, Türkiye), `ja-JP` (Japanese, Japan), `ko-KR` (Korean, South Korea), `id-ID` (Indonesian, Indonesia), `zh-TW` (Chinese, Taiwan), `it-IT` (Italian, Italy), `uk-UA` (Ukrainian, Ukraine), `ru-RU` (Russian, Russia), `sl-SI` (Slovenian, Slovenia), `nl-NL` (Dutch, Netherlands), `el-GR` (Greek, Greece), `hr-HR` (Croatian, Croatia), `sr-SP` (Serbian, Serbia), `bs-BA` (Bosnian, Bosnia and Herzegovina), `sr-ME` (Serbian, Montenegro), `ro-RO` (Romanian, Romania), `pl-PL` (Polish, Poland), `cs-CZ` (Czech, Czechia), `kk-KZ` (Kazakh, Kazakhstan), `az-AZ` (Azerbaijani, Azerbaijan), `ka-GE` (Georgian, Georgia), `fr-FR` (French, France), `de-DE` (German, Germany), `pt-PT` (Portuguese, Portugal), `en` (English) (default: `en-US`)	`en-US`
`tenant_code`	string	true	Tenant code used for tenant isolation and validating the tenant configuration on the DP Platform	`0494`
`action_type`	string	true	Access mode of the session; supported values: `view`, `operate`, `visitor` (default: `operate`)	`operate`
`channel`	string	false	Distribution channel identifier of the host app, used for channel-level configuration and analytics, e.g. `standard`, `eBridge` (default: `standard`)	`standard`
`verify_purchase_pro_code`	string	false	Product code for purchase verification — only required when the product is a verification (Walk-in redemption) product	`IL0494000002`
`pro_code`	string	true	Product code used by the Premium Lounge and non-Walk-in booking flows (IL product)	`IL0494000001`
`module`	string	true	Business module identifier used for module-level routing and configuration (`1` for Lounge)	`1`

ℹ️ Parameter naming varies by category. This app uses verify_purchase_pro_code for the Walk-in booking flow and pro_code for Premium Lounge / non-Walk-in flows — both are read from the URL (see System parameters for the full list).

Page parameters

These parameters are only needed when the corresponding page is opened directly.

Landing (lounge/landing)

When opening the Landing page with deeplink parameters, the jump priority is: resource_id (jumps to Resource detail) > transport_hub_id (jumps to the transport hub search result) > search filters (iata_code / city_id / city_name / country_or_region / station_name).

Parameter	Type	Required	Description	Example
`resource_id`	string	false	Resource ID of the lounge, passed when opening the Landing page to jump directly to the lounge detail page	`N01878`
`transport_hub_id`	string	false	Jumps to the search result page of a specific transport hub	—
`transport_hub_name`	string	false	Name of the transport hub to jump to	—
`iata_code`	string	false	Airport IATA code to pre-filter the search result page	`MAN`
`city_id`	string	false	City ID to pre-filter the search page	`E239`
`city_name`	string	false	City name to pre-filter the search page	`Manchester`
`country_or_region`	string	false	Country or region name to pre-filter the search page	`United Kingdom`
`station_name`	string	false	Station name to pre-filter the search page	`Manchester Airport`

Location search (common/search)

Parameter	Type	Required	Description	Example
`keyword`	string	false	Search keyword used to pre-fill the search box, e.g. a city name or airport name — the page searches as you type	`Manchester`
`iata_code`	string	false	Airport IATA code used to pre-fill and filter the search results, e.g. `MAN` for Manchester Airport	`MAN`
`city_id`	string	false	City ID used to pre-fill the search, narrowing results to the given city	`E239`
`city_name`	string	false	City name used to pre-fill the search box, narrowing results to the given city	`Manchester`
`country_or_region`	string	false	Country or region name used to pre-fill the search, narrowing results to the given country or region	`United Kingdom`
`station_name`	string	false	Station (airport) name used to pre-fill the search, narrowing results to the given station	`Manchester Airport`

Resource list (common/search-result)

Parameter	Type	Required	Description	Example
`transport_hub_id`	string	false	Transport hub ID that loads the search result list of a specific hub directly, skipping the search step	—
`transport_hub_name`	string	false	Name of the transport hub displayed at the top of the result page, usually paired with `transport_hub_id`	—
`iata_code`	string	false	Airport IATA code used to pre-filter the result list, showing only lounges at the given airport	`MAN`

Resource detail (lounge/detail)

Parameter	Type	Required	Description	Example
`resource_id`	string	true	Resource ID of the lounge, required to load the lounge details when the page is opened directly	`N01878`

Order detail (lounge/order-detail)

Parameter	Type	Required	Description	Example
`order_no`	string	true	Order number of the lounge reservation, required to load the order details when the page is opened directly	`SL20260730BMIUPFB`

Prerequisites

A registered clientId from the DP Platform dashboard
The lounge appId configured under your client
DP Hybrid SDK integrated into your host app

iOS

Open the Lounge DPApp from any UIViewController:

Swift
// From any UIViewController
DPSDK.open(appId: "lounge", from: self)

To open a specific page directly (e.g. landing or order detail), pass the page path and its query parameters in the params dictionary:

Swift
// Open the landing page (default)
DPSDK.open(appId: "lounge", from: self)

// Open the landing page directly
DPSDK.open(
  appId: "lounge",
  params: [
    "path": "lounge/landing",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "1",
    "language": "en-US",
    "verify_purchase_pro_code": "IL0494000002",
  ],
  from: self
)

// Open the order detail page directly
DPSDK.open(
  appId: "lounge",
  params: [
    "path": "lounge/order-detail",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "1",
    "language": "en-US",
    "verify_purchase_pro_code": "IL0494000002",
    "order_no": "SL20260730BMIUPFB",
  ],
  from: self
)

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, resource_id, iata_code) are appended only for the pages that need them (see Page parameters).

Android

Open the Lounge DPApp from any Activity or Fragment:

Kotlin
// From any Activity or Fragment
DPSDK.getDPApp("lounge").open(this)

To open a specific page directly (e.g. landing or order detail), pass the page path to open() and set the query parameters via setExtraUrlParams:

Kotlin
// Open the landing page (default)
DPSDK.getDPApp("lounge").open(this)

// Open the landing page directly
val dpApp = DPSDK.getDPApp("lounge")
dpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "1",
        "language" to "en-US",
        "verify_purchase_pro_code" to "IL0494000002",
      )
    )
    .build()
).open(this, "lounge/landing")

// Open the order detail page directly
val orderDpApp = DPSDK.getDPApp("lounge")
orderDpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "1",
        "language" to "en-US",
        "verify_purchase_pro_code" to "IL0494000002",
        "order_no" to "SL20260730BMIUPFB",
      )
    )
    .build()
).open(this, "lounge/order-detail")

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, resource_id, iata_code) are appended only for the pages that need them (see Page parameters).

Handling order results

When a booking is placed or an order detail is opened, the host app can listen for URL changes to react to the result (e.g. refresh its own order list after a successful booking). See DPApp URL Listener for the full API.

Swift
// iOS
DPApp.delegate = self

extension ViewController: DPAppCustomDelegate {
  func didDPAppChangeUrlEvent(DPApp: DPApp, url: URL) {
    // url.path contains the DPApp page path, e.g. "lounge/order-detail"
  }
}

Kotlin
// Android
val dpApp = DPSDK.getDPApp("lounge")
dpApp.setUrlChangeListener { activity, url ->
  // url?.path contains the DPApp page path, e.g. "lounge/order-detail"
}.open(this)
