Transport

The Transport DPApp provides airport transfer and chauffeur-driven booking functionality, allowing users to search, book, and manage transfers directly within your host app. Supports point-to-point transfers, airport pickups/drop-offs, vehicle selection, and order management.

User flow

The Transport journey is shown from left to right.

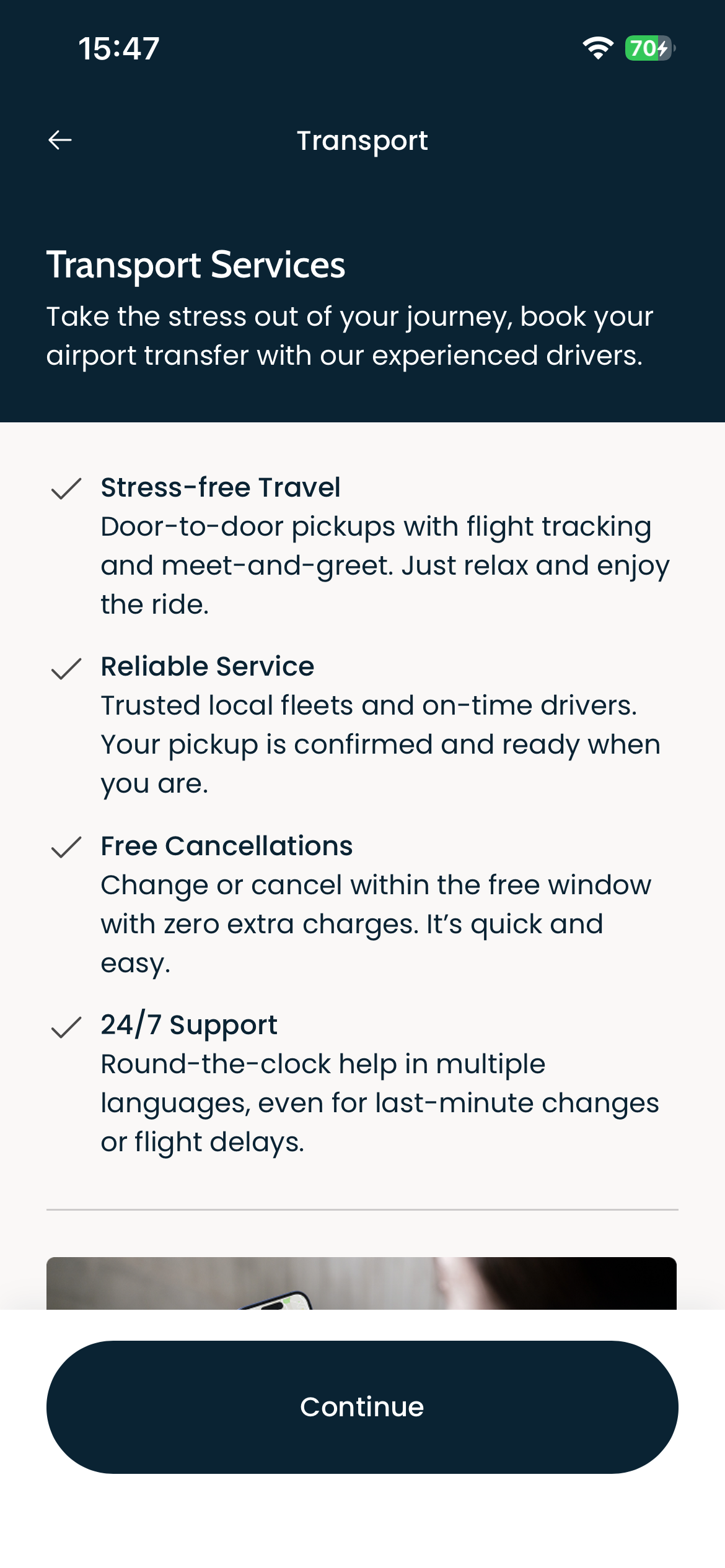

Transport Services

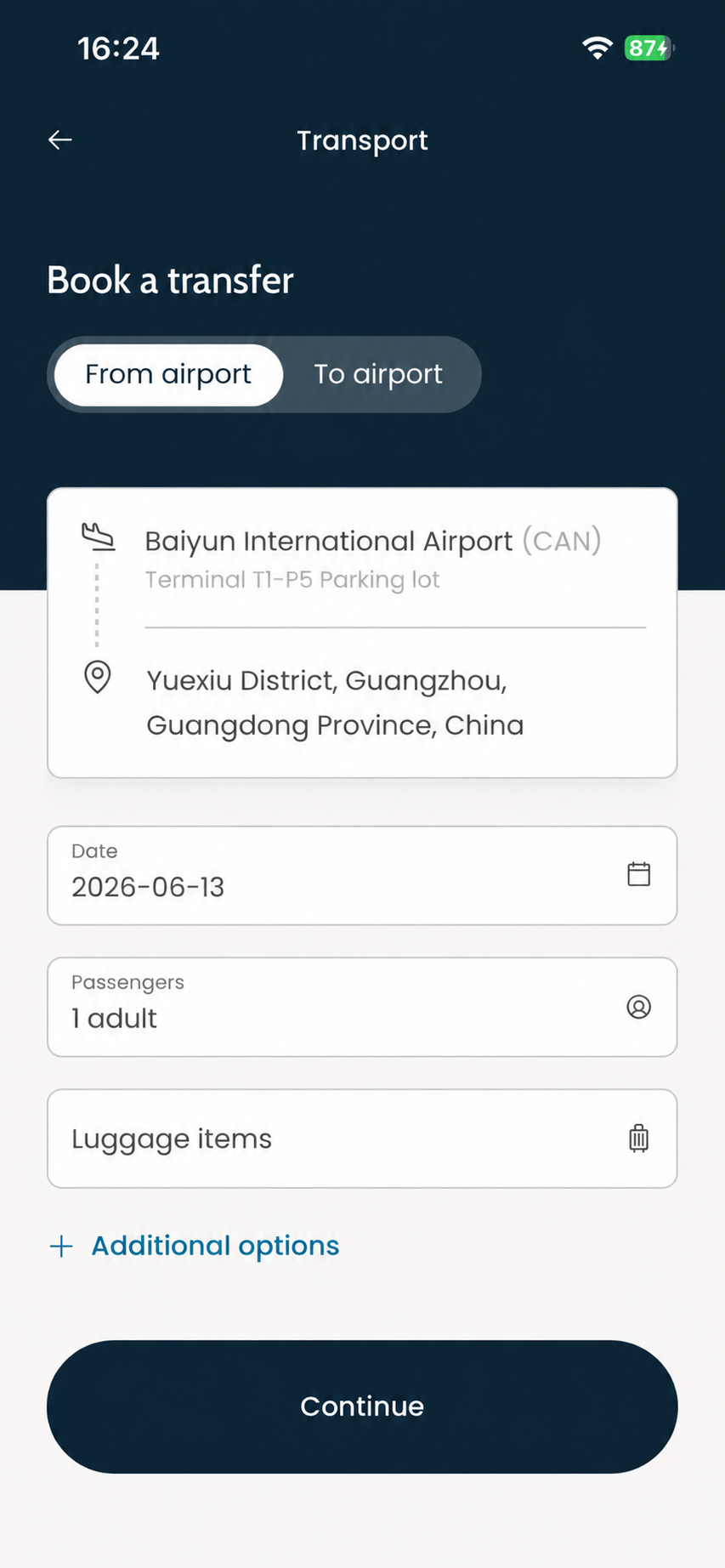

Book a transfer

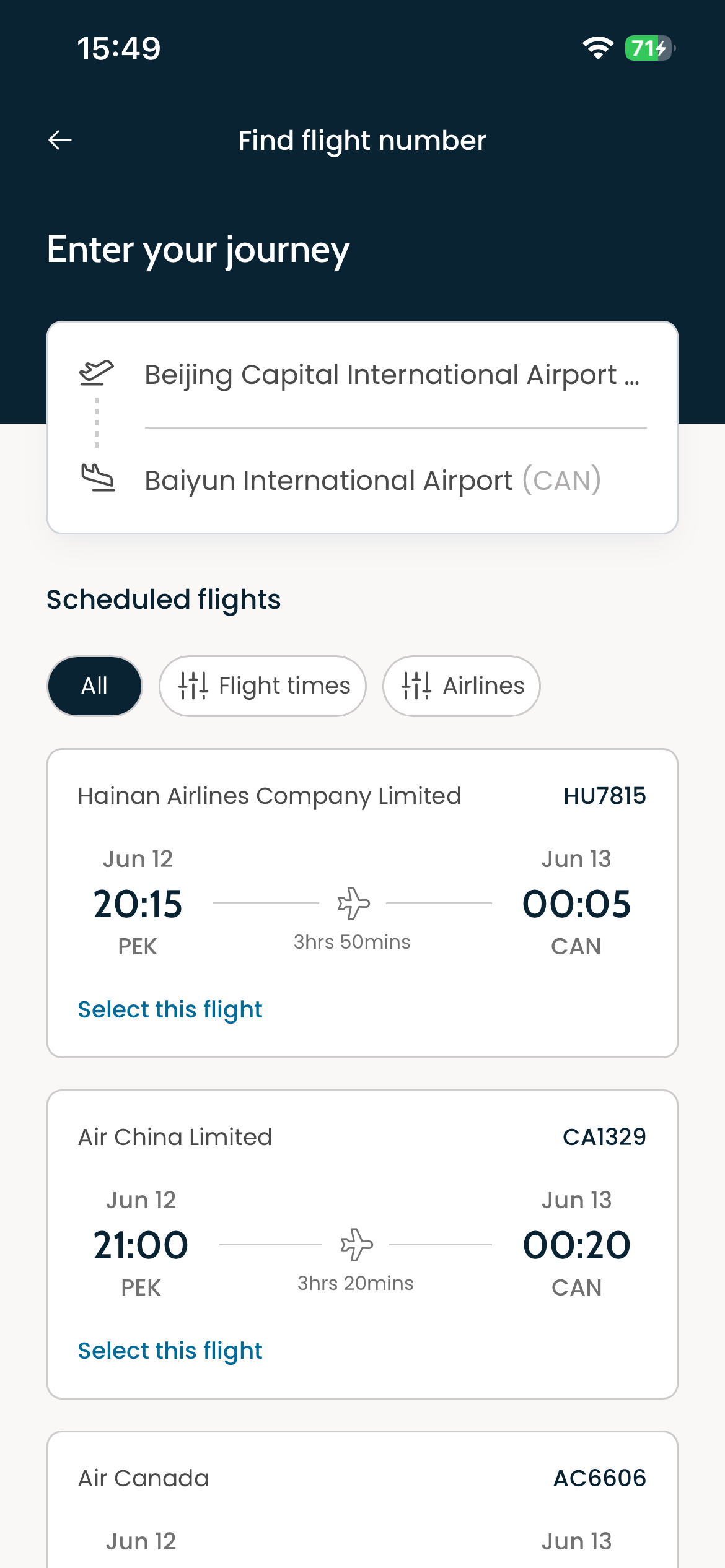

Find flight number

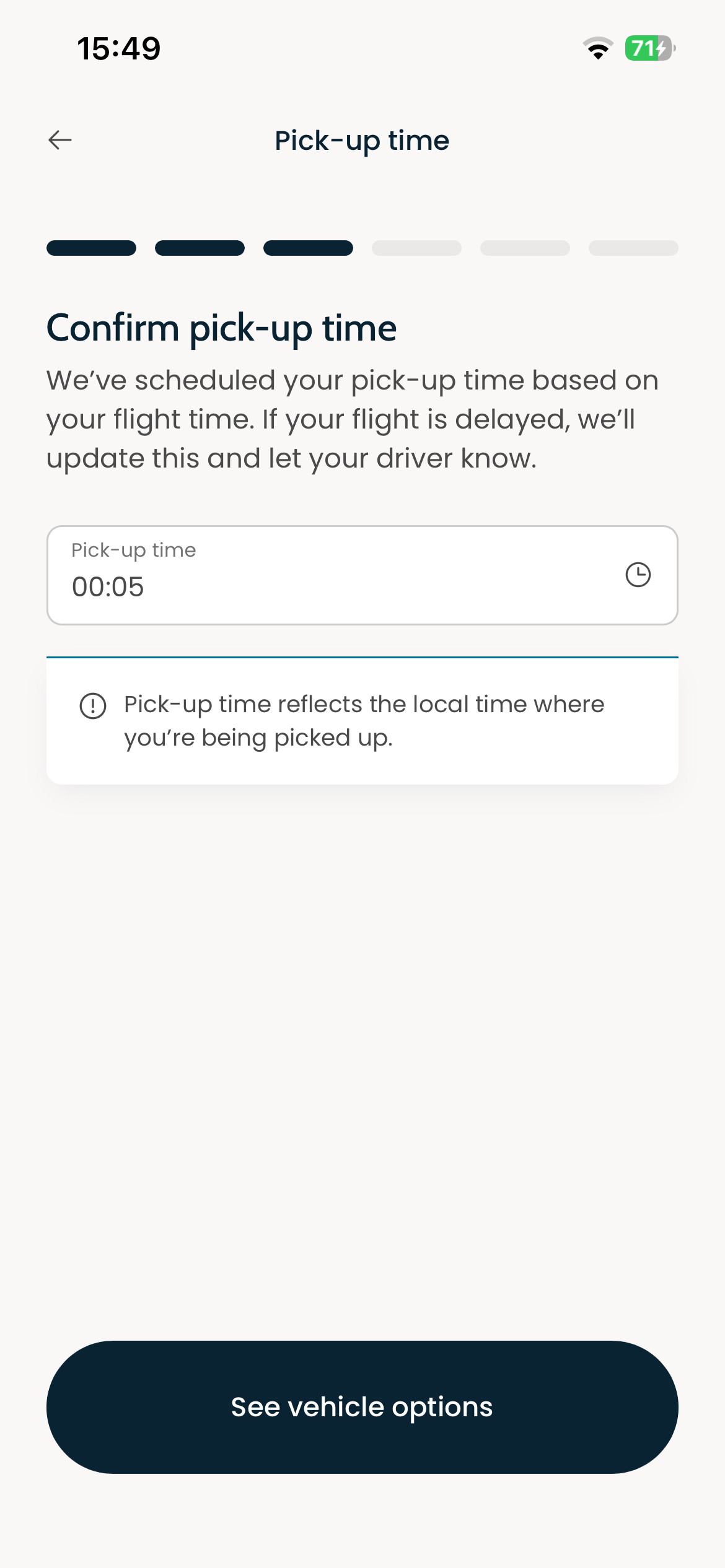

Pick-up time

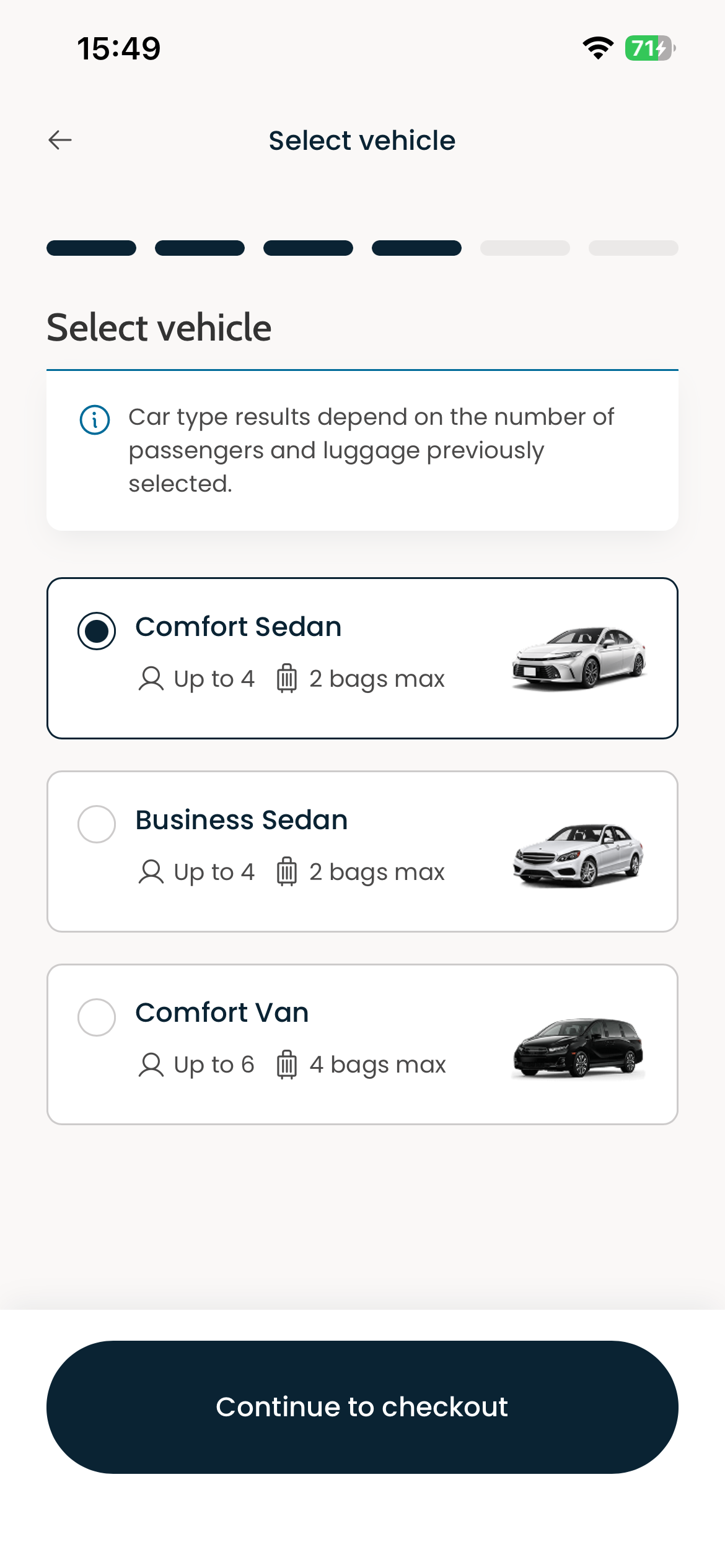

Select vehicle

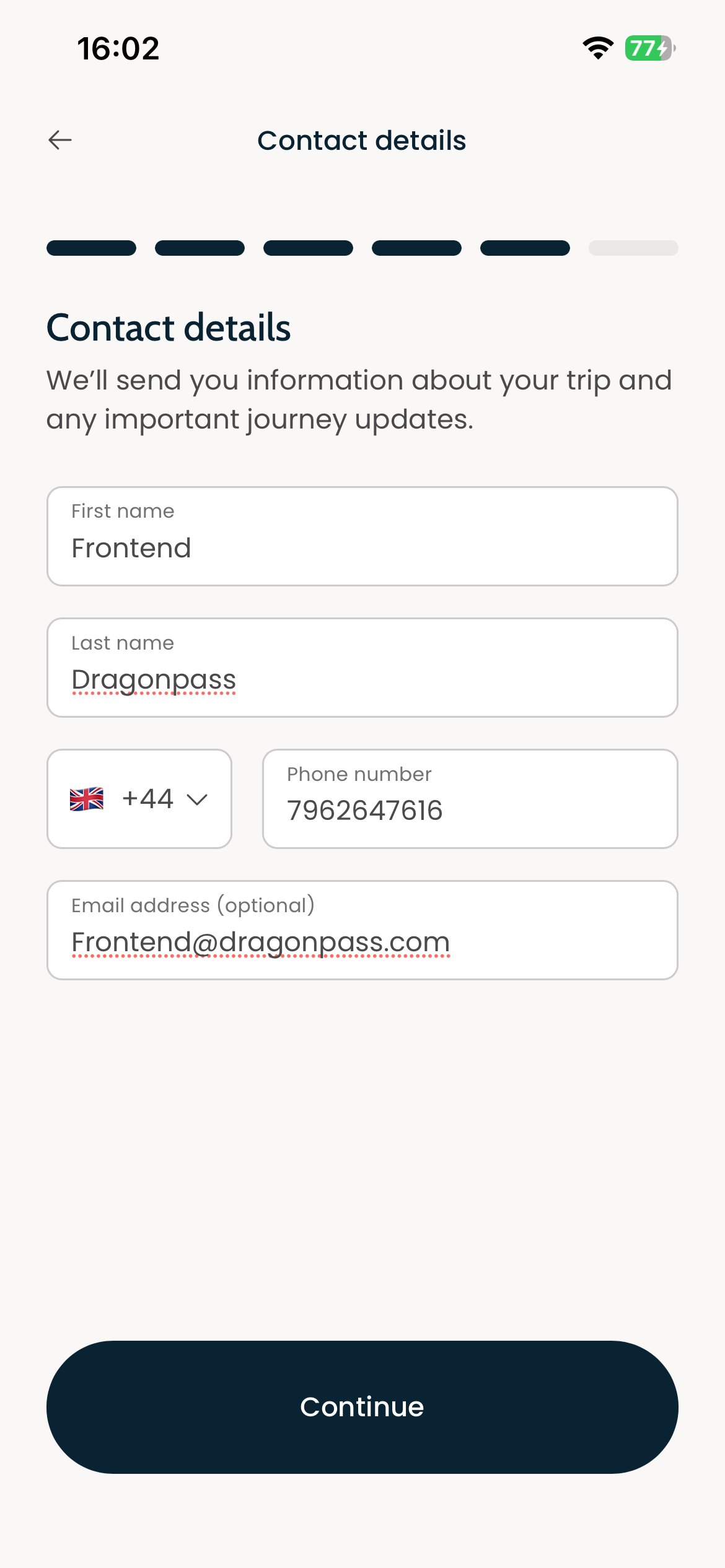

Contact details

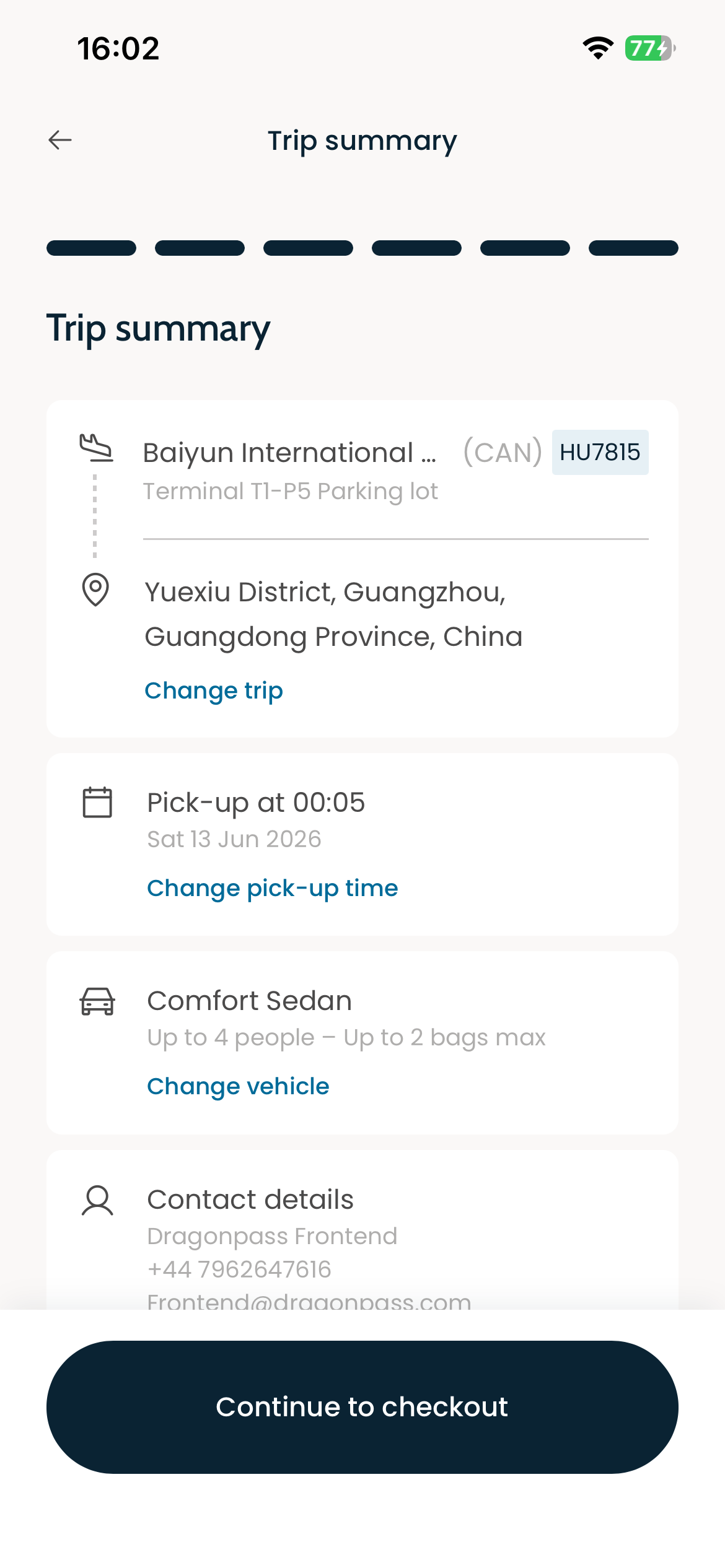

Trip summary

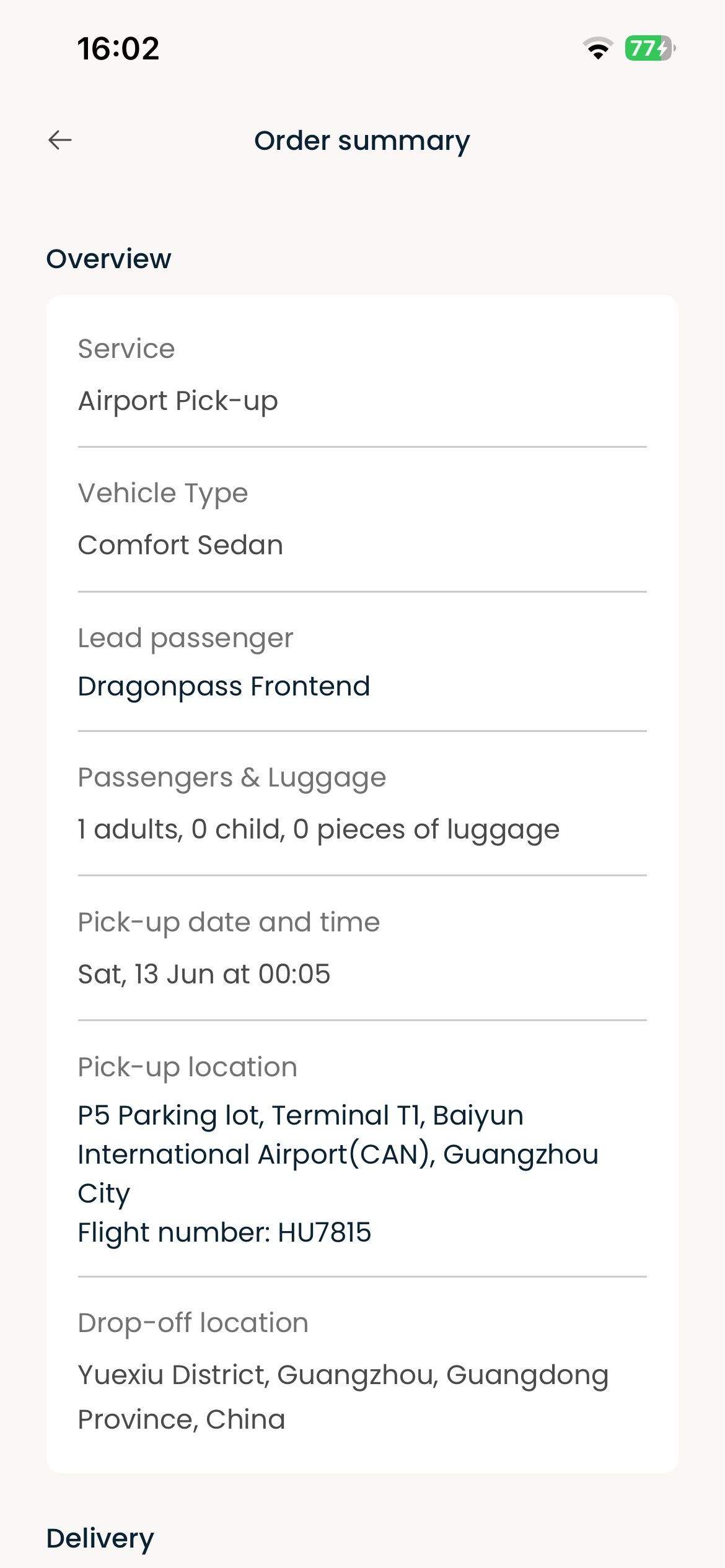

Order summary

Routes & Parameters

Pages are opened by the host app via DPSDK.open(appId: "transport", ...) (iOS) or DPSDK.getDPApp("transport").open(...) (Android), or navigated internally. Only the pages below can be opened via the SDK — other pages (e.g. Flight search, Select vehicle, Trip summary) are internal flow pages reached from within the app.

PAGE NAME	PATH	Query parameters	Description
Landing	`limousine/product-detail`	—	Product intro page with transport service highlights and booking entry
Booking	`limousine/transfer`	`airport_code`	Transfer booking form — airport, date, passengers & luggage
Order detail	`limousine/order-detail`	`order_no`	Order details & management

Parameters

System parameters

These parameters are required and must always be included when opening the Transport DPApp.

Parameter	Type	Required	Description	Example
`language`	string	true	UI language of the app; supported values: `en-US` (English, United States), `zh-CN` (Chinese, China), `zh-TW` (Chinese, Taiwan), `zh-HK` (Chinese, Hong Kong), `ko-KR` (Korean, South Korea), `ja-JP` (Japanese, Japan), `vi-VN` (Vietnamese, Vietnam), `th-TH` (Thai, Thailand), `id-ID` (Indonesian, Indonesia), `fr-FR` (French, France), `de-DE` (German, Germany), `ar-SA` (Arabic, Saudi Arabia), `ru-RU` (Russian, Russia), `pt-BR` (Portuguese, Brazil) (default: `en-US`)	`en-US`
`tenant_code`	string	true	Tenant code used for tenant isolation and validating the tenant configuration on the DP Platform	`0494`
`action_type`	string	true	Access mode of the session; supported values: `view`, `operate`, `visitor` (default: `operate`)	`operate`
`channel`	string	false	Distribution channel identifier of the host app, used for channel-level configuration and analytics, e.g. `global-app`, `standard` (default: `standard`)	`standard`
`pro_code`	string	true	Product code that determines which product the checkout flow lands on	`LS0494000001`
`module`	string	true	Business module identifier used for module-level routing and configuration (`9` for Transport)	`9`

ℹ️ Parameter naming varies by category: this app uses pro_code for the product code. See System parameters for the full list.

Page parameters

These parameters are only needed when the corresponding page is opened directly.

Booking (limousine/transfer)

When opening the Booking page with deeplink parameters, the jump priority is: airport_code.

Parameter	Type	Required	Description	Example
`airport_code`	string	false	Airport code used to pre-select the pickup/drop-off airport when opening the booking form (internal code, maps to an airport e.g. `A10072` = Baiyun International Airport CAN)	`A10072`

Order detail (limousine/order-detail)

Parameter	Type	Required	Description	Example
`order_no`	string	true	Booking order number of the reservation, required to load the order details when the page is opened directly	`GCO20260730063713A014467`

Prerequisites

A registered clientId from the DP Platform — contact us to get one
The transport appId configured under your client
DP Hybrid SDK integrated into your host app

iOS

Open the Transport DPApp from any UIViewController:

Swift
// From any UIViewController
DPSDK.open(appId: "transport", from: self)

To open a specific page directly (e.g. landing or order detail), pass the page path and its query parameters in the params dictionary:

Swift
// Open the landing page (default)
DPSDK.open(appId: "transport", from: self)

// Open the landing page directly
DPSDK.open(
  appId: "transport",
  params: [
    "path": "limousine/product-detail",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "9",
    "language": "en-US",
    "pro_code": "LS0494000001",
  ],
  from: self
)

// Open the order detail page directly
DPSDK.open(
  appId: "transport",
  params: [
    "path": "limousine/order-detail",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "9",
    "language": "en-US",
    "pro_code": "LS0494000001",
    "order_no": "GCO20260730063713A014467",
  ],
  from: self
)

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, code, resource_id) are appended only for the pages that need them (see Page parameters).

Android

Open the Transport DPApp from any Activity or Fragment:

Kotlin
// From any Activity or Fragment
DPSDK.getDPApp("transport").open(this)

To open a specific page directly (e.g. landing or order detail), pass the page path to open() and set the query parameters via setExtraUrlParams:

Kotlin
// Open the landing page (default)
DPSDK.getDPApp("transport").open(this)

// Open the landing page directly
val dpApp = DPSDK.getDPApp("transport")
dpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "9",
        "language" to "en-US",
        "pro_code" to "LS0494000001",
      )
    )
    .build()
).open(this, "limousine/product-detail")

// Open the order detail page directly
val orderDpApp = DPSDK.getDPApp("transport")
orderDpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "9",
        "language" to "en-US",
        "pro_code" to "LS0494000001",
        "order_no" to "GCO20260730063713A014467",
      )
    )
    .build()
).open(this, "limousine/order-detail")

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, code, resource_id) are appended only for the pages that need them (see Page parameters).

Handling order results

When a booking is placed or an order detail is opened, the host app can listen for URL changes to react to the result (e.g. refresh its own order list after a successful booking). See DPApp URL Listener for the full API.

Swift
// iOS
DPApp.delegate = self

extension ViewController: DPAppCustomDelegate {
  func didDPAppChangeUrlEvent(DPApp: DPApp, url: URL) {
    // url.path contains the DPApp page path, e.g. "limousine/order-detail"
  }
}

Kotlin
// Android
val dpApp = DPSDK.getDPApp("transport")
dpApp.setUrlChangeListener { activity, url ->
  // url?.path contains the DPApp page path, e.g. "limousine/order-detail"
}.open(this)

Reference

Getting Started — SDK installation & initialization
Connect — SSO setup
Custom Events System — Handle DPApp events
Error Codes — Error code reference
