eSIM

The eSIM DPApp provides global eSIM data plan services, allowing users to browse, purchase, and manage eSIM data plans for international travel — all within your host app. Supports destination search, multi-eSIM management, and per-eSIM detail views with ICCID tracking.

User flow

The eSIM journey is shown from left to right.

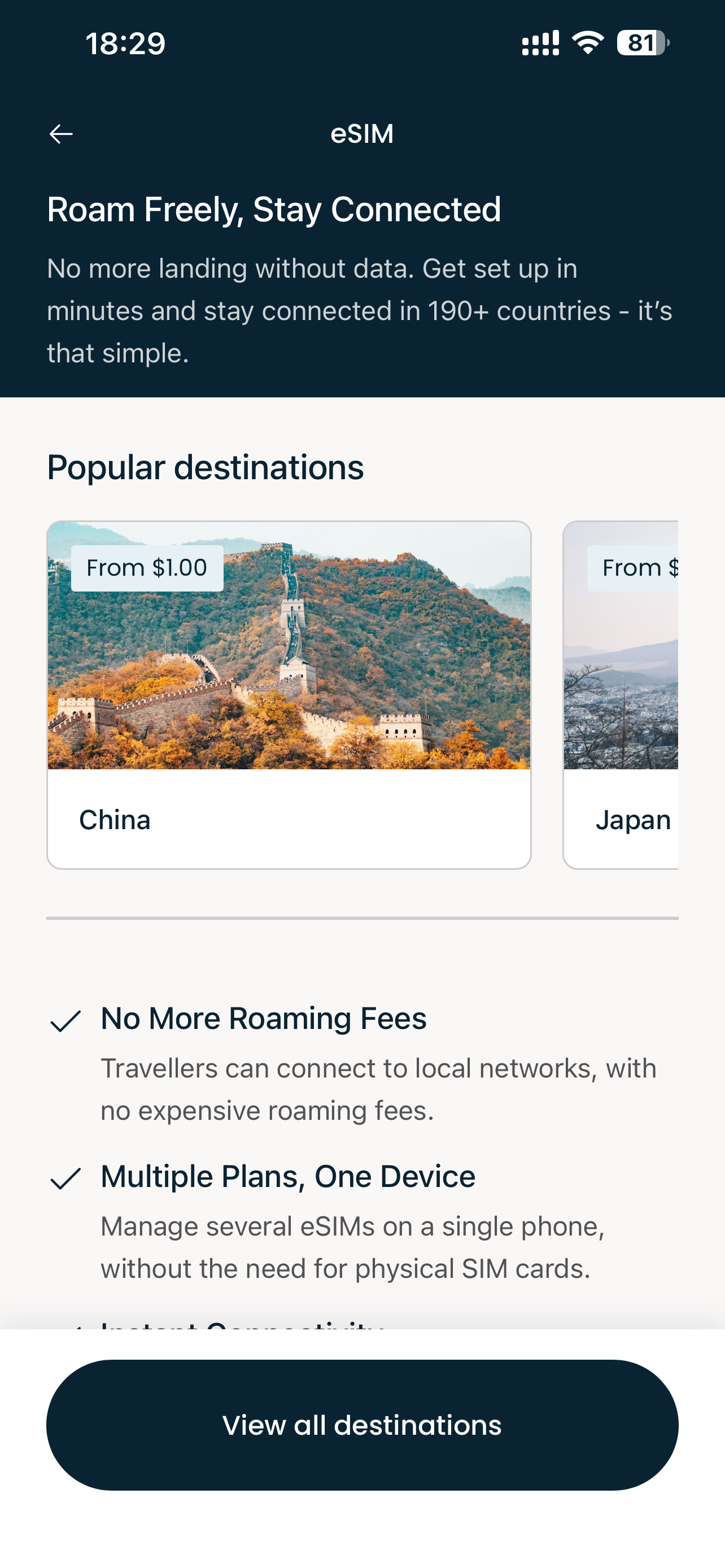

Landing

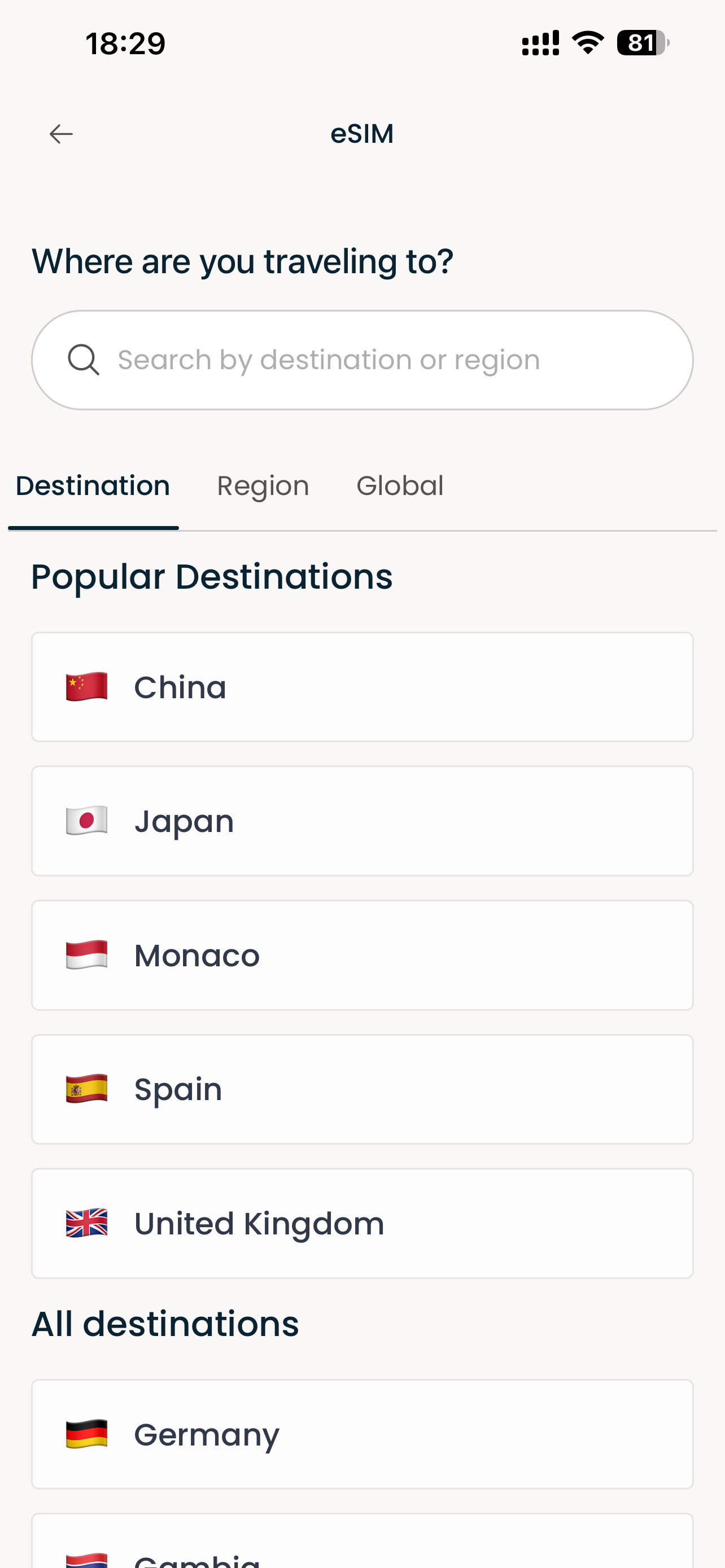

Destination search

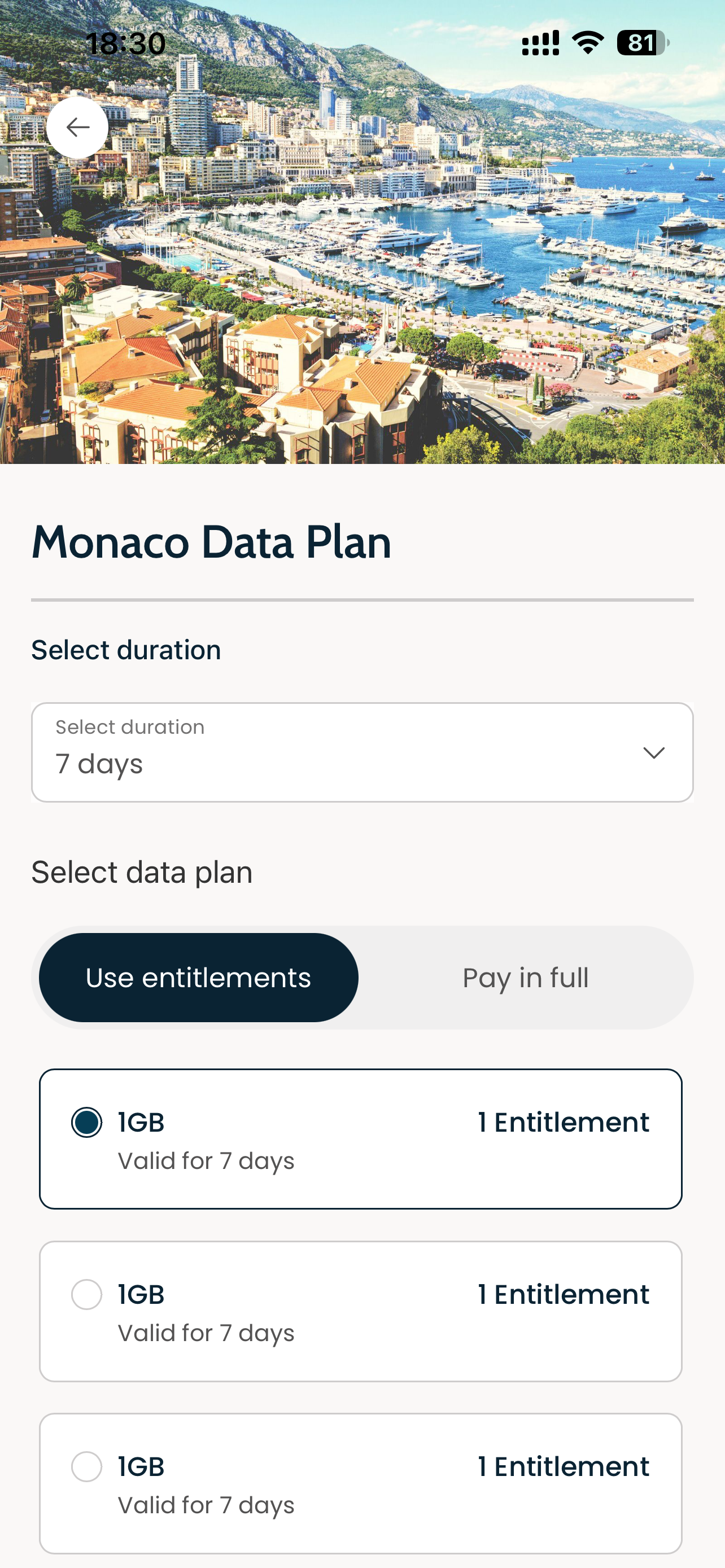

Data plan

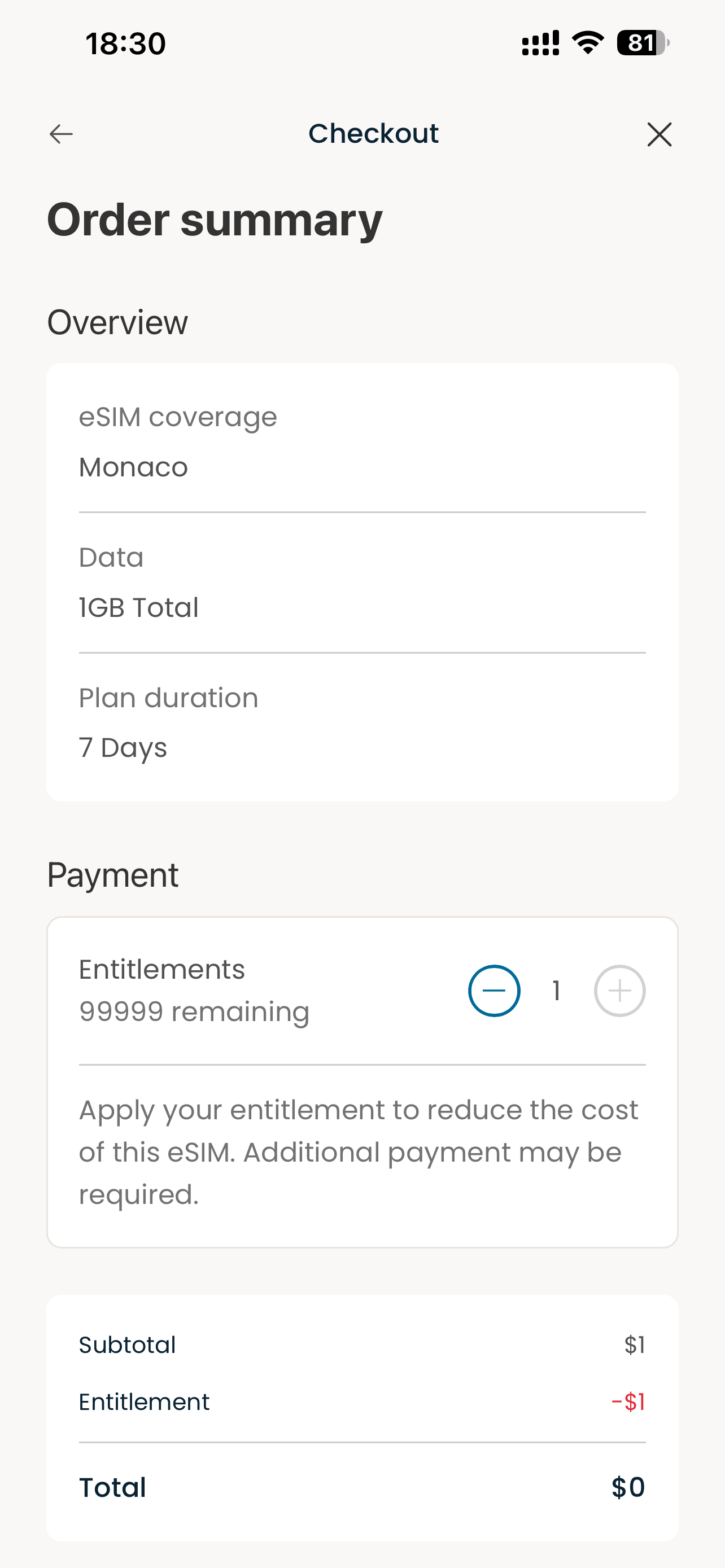

Checkout

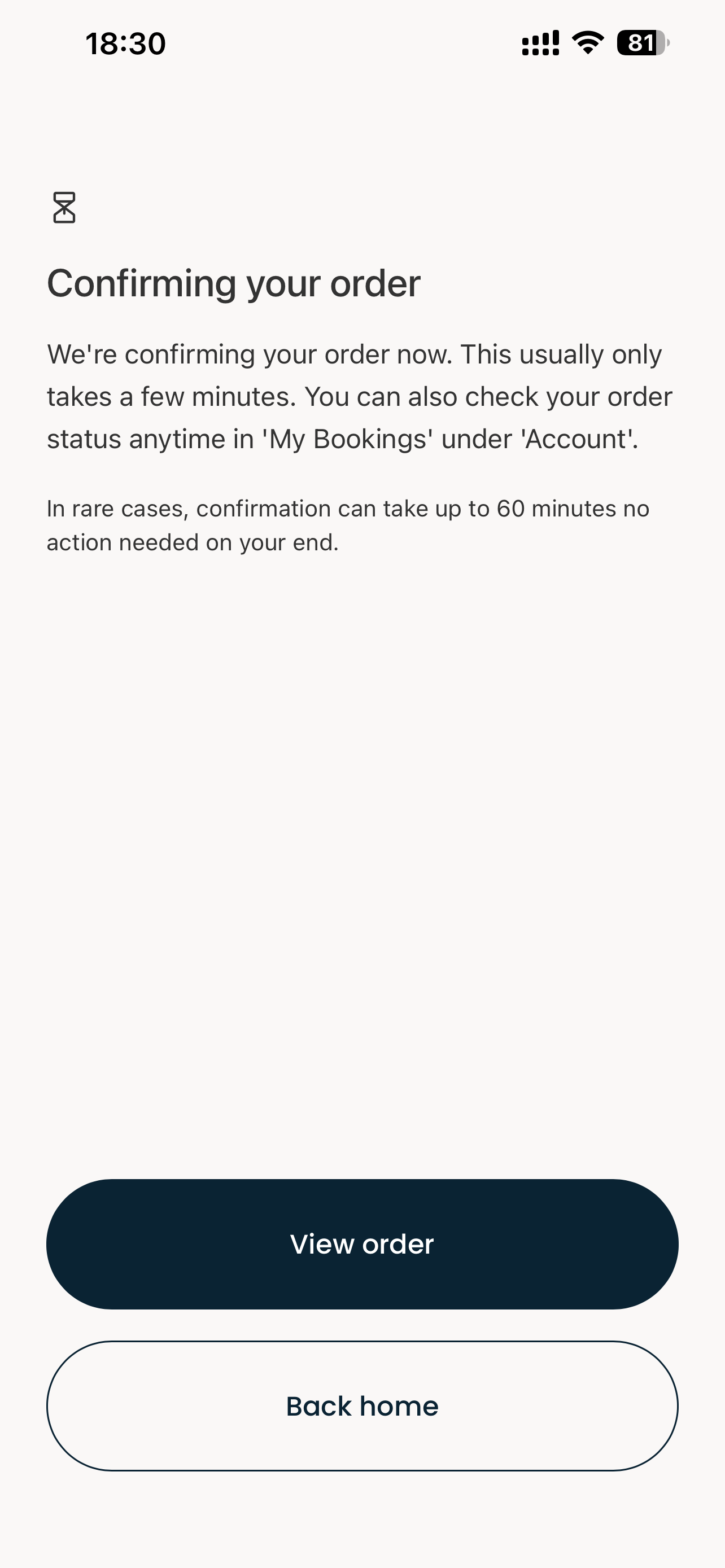

Order result

Routes & Parameters

Pages are opened by the host app via DPSDK.open(appId: "esim", ...) (iOS) or DPSDK.getDPApp("esim").open(...) (Android), or navigated internally. Only the pages below can be opened via the SDK — other pages (e.g. Install guidance, Order summary, Pay result) are internal flow pages reached from within the app.

PAGE NAME	PATH	Query parameters	Description
Landing	`landing`	—	Entry page introducing eSIM data plans
Destination search	`dest-search`	—	Search eSIM plans by destination
Data plan	`data-plan`	`code`	Data plan details & purchase
eSIM detail	`esim-detail`	`iccid`	eSIM detail view with ICCID tracking
Order detail	`order-detail`	`order_no`	Order details & management
My eSIM	`my-esim`	—	Manage purchased eSIMs — view, top up, archive and install eSIMs

Parameters

System parameters

These parameters are required and must always be included when opening the eSIM DPApp.

Parameter	Type	Required	Description	Example
`language`	string	true	UI language of the app; supported values: `en-US` (English, United States) (default: `en-US`)	`en-US`
`tenant_code`	string	true	Tenant code used for tenant isolation and validating the tenant configuration on the DP Platform	`0494`
`action_type`	string	true	Access mode of the session; supported value: `operate`	`operate`
`channel`	string	false	Distribution channel identifier of the host app, used for channel-level configuration and analytics, e.g. `standard`, `eBridge` (default: `standard`)	`standard`
`verify_purchase_pro_code`	string	true	Product code for purchase verification	`ISC0494000003`
`module`	string	true	Business module identifier used for module-level routing and configuration (`12` for eSIM)	`12`

ℹ️ Parameter naming varies by category: this app uses verify_purchase_pro_code for the product code (not pro_code). See System parameters for the full list.

Page parameters

These parameters are only needed when the corresponding page is opened directly.

Data plan (data-plan)

Parameter	Type	Required	Description	Example
`code`	string	true	Resource code of the data plan, required to load the plan details when the page is opened directly	`GR0005860`

eSIM detail (esim-detail)

Parameter	Type	Required	Description	Example
`iccid`	string	true	ICCID of the eSIM, required to load the eSIM detail when the page is opened directly	`89860012345678901234` (example value — use a real ICCID)

Order detail (order-detail)

Parameter	Type	Required	Description	Example
`order_no`	string	true	Order number of the eSIM order, required to load the order details when the page is opened directly	`ISC20260813BMBGNL3`

Prerequisites

A registered clientId from the DP Platform — contact us to get one
The esim appId configured under your client
DP Hybrid SDK integrated into your host app

iOS

Open the eSIM DPApp from any UIViewController:

Swift
// From any UIViewController
DPSDK.open(appId: "esim", from: self)

To open a specific page directly (e.g. landing or order detail), pass the page path and its query parameters in the params dictionary:

Swift
// Open the landing page (default)
DPSDK.open(appId: "esim", from: self)

// Open the landing page directly
DPSDK.open(
  appId: "esim",
  params: [
    "path": "landing",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "12",
    "language": "en-US",
    "verify_purchase_pro_code": "ISC0494000003",
  ],
  from: self
)

// Open the order detail page directly
DPSDK.open(
  appId: "esim",
  params: [
    "path": "order-detail",
    "tenant_code": "0494",
    "action_type": "operate",
    "module": "12",
    "language": "en-US",
    "verify_purchase_pro_code": "ISC0494000003",
    "order_no": "ISC20260813BMBGNL3",
  ],
  from: self
)

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, code, resource_id) are appended only for the pages that need them (see Page parameters).

Android

Open the eSIM DPApp from any Activity or Fragment:

Kotlin
// From any Activity or Fragment
DPSDK.getDPApp("esim").open(this)

To open a specific page directly (e.g. landing or order detail), pass the page path to open() and set the query parameters via setExtraUrlParams:

Kotlin
// Open the landing page (default)
DPSDK.getDPApp("esim").open(this)

// Open the landing page directly
val dpApp = DPSDK.getDPApp("esim")
dpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "12",
        "language" to "en-US",
        "verify_purchase_pro_code" to "ISC0494000003",
      )
    )
    .build()
).open(this, "landing")

// Open the order detail page directly
val orderDpApp = DPSDK.getDPApp("esim")
orderDpApp.setDPAppConfig(
  DPAppConfig.Builder()
    .setExtraUrlParams(
      hashMapOf(
        "tenant_code" to "0494",
        "action_type" to "operate",
        "module" to "12",
        "language" to "en-US",
        "verify_purchase_pro_code" to "ISC0494000003",
        "order_no" to "ISC20260813BMBGNL3",
      )
    )
    .build()
).open(this, "order-detail")

Note: the system parameters above are required whenever a page is opened directly. Page-specific parameters (e.g. order_no, code, resource_id) are appended only for the pages that need them (see Page parameters).

Handling order results

When a booking is placed or an order detail is opened, the host app can listen for URL changes to react to the result (e.g. refresh its own order list after a successful booking). See DPApp URL Listener for the full API.

Swift
// iOS
DPApp.delegate = self

extension ViewController: DPAppCustomDelegate {
  func didDPAppChangeUrlEvent(DPApp: DPApp, url: URL) {
    // url.path contains the DPApp page path, e.g. "order-detail"
  }
}

Kotlin
// Android
val dpApp = DPSDK.getDPApp("esim")
dpApp.setUrlChangeListener { activity, url ->
  // url?.path contains the DPApp page path, e.g. "order-detail"
}.open(this)

Reference

Getting Started — SDK installation & initialization
Connect — SSO setup
Custom Events System — Handle DPApp events
Error Codes — Error code reference
